IVP Motor Adapter Leybold D16A EURO Pump to U.S. Motor

IVP Motor Adapter for Leybold D16-A

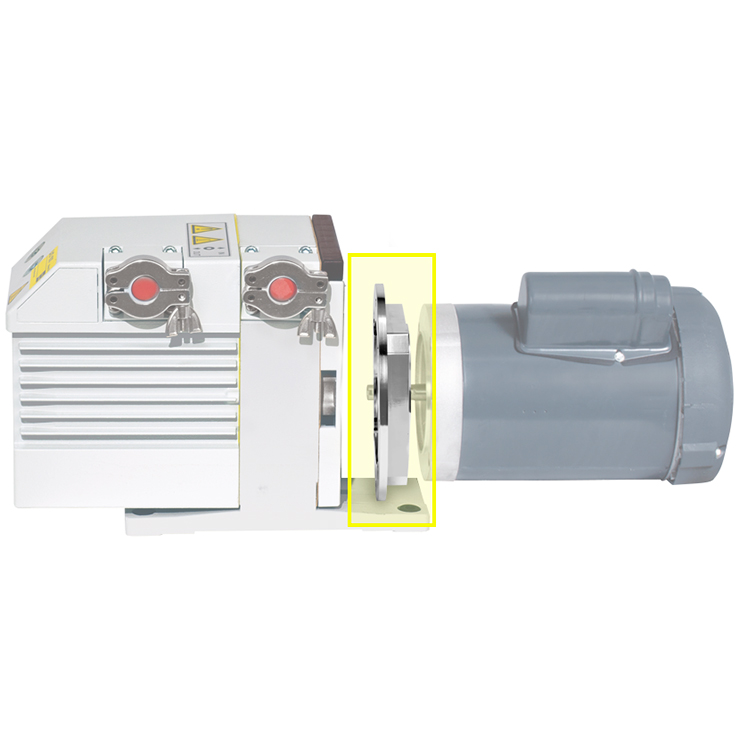

Designed to mount an American motor to a European D-16A mount

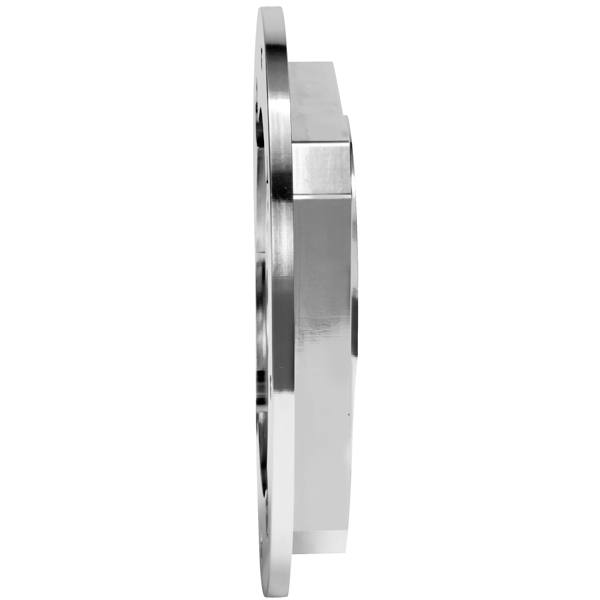

The Ideal Vacuum Motor Conversion Plate was specially designed and made to adapt American made motors to European pumps. This adapter plate is to be used on the following pumps: D16-A Leybold European Vacuum Pumps to USA 56C Frame Motors. This is the aluminum plate ONLY, NO hardware included, Part Number: AD-02-201. Motor sold separately.

Press ESC to Close

Ideal Vacuum Company Overview Brochure.pdf

P109705.sldprt

P109705.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
