Ideal Vacuum Liquid or Gas Single Feedthrough, 0.50 In OD Tube, 1/2 in Swagelok Tube Socket Weld End Connectors, Flange KF-40 Flange, SS

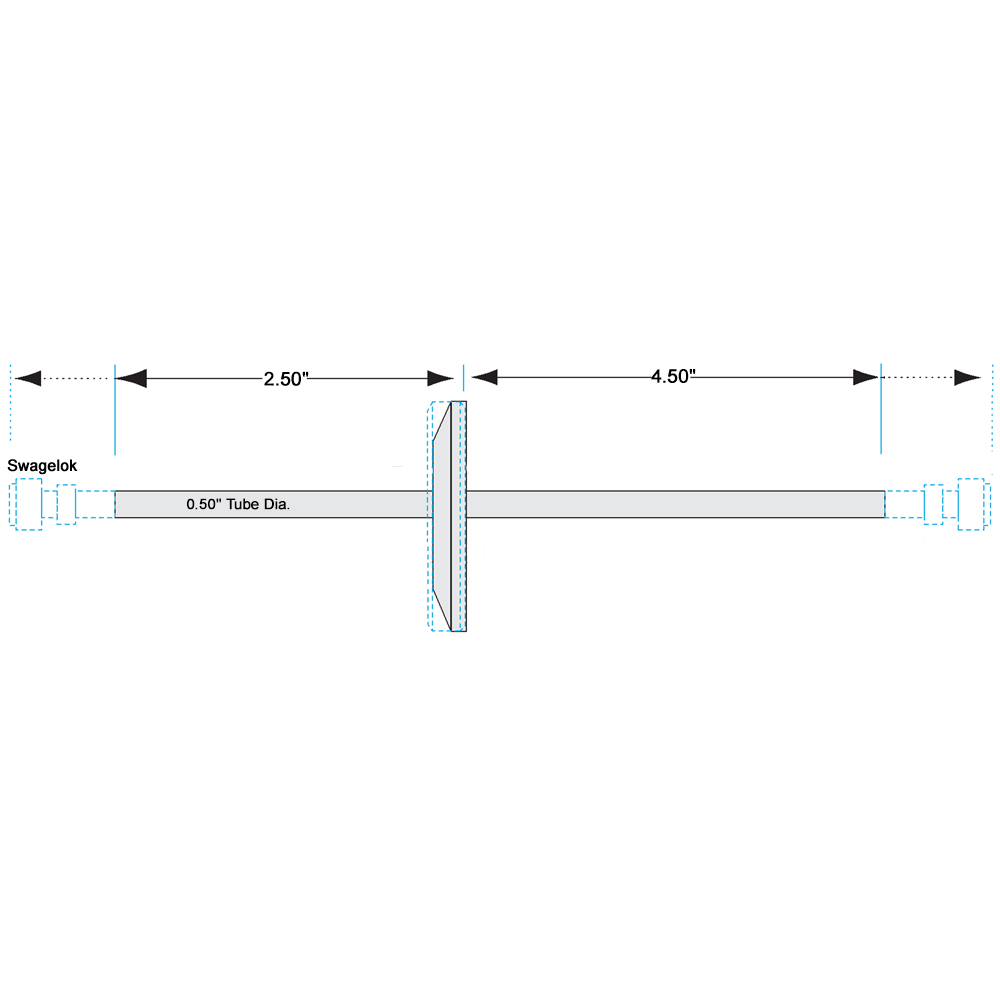

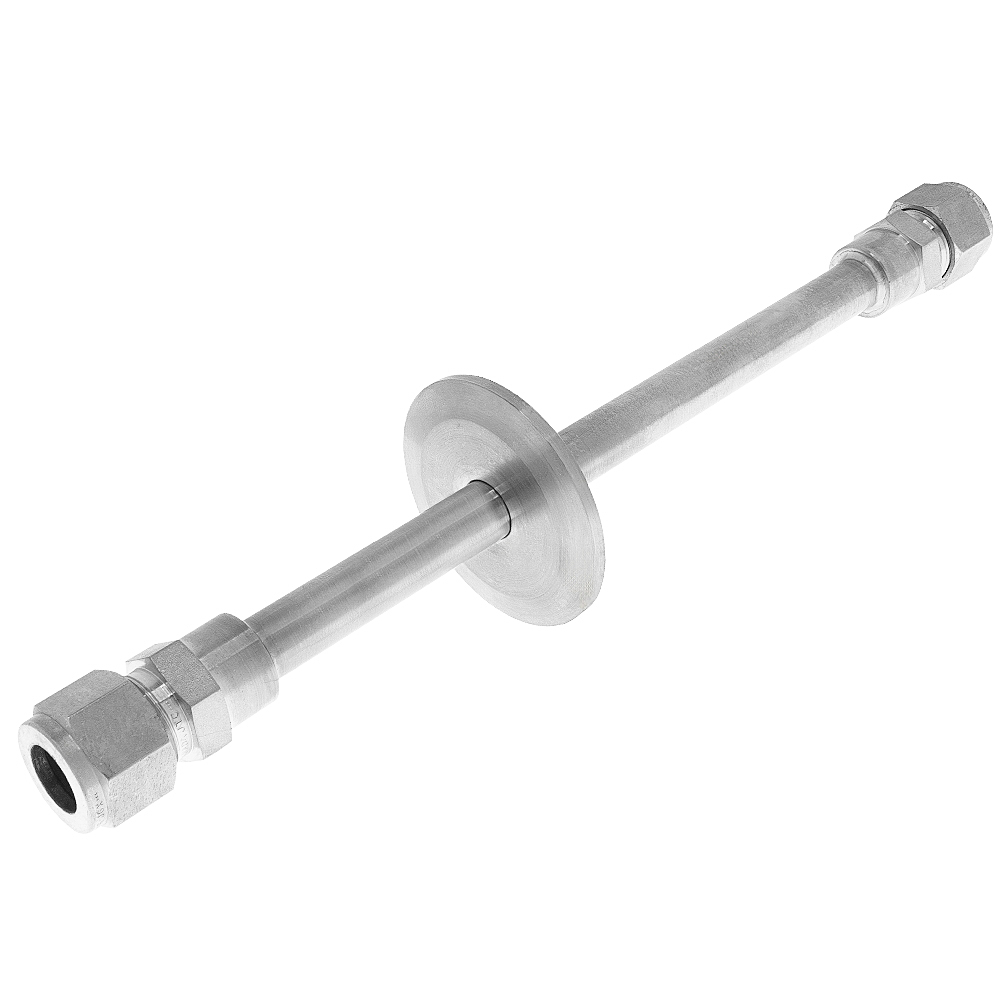

These single tube feedthroughs, for liquid or gas, have a flange size of ISO KF40 NW-40. They have 0.50 in. stainless steel tubes welded to both sides of the central KF-40 flange. Tubes are terminated in Swagelok 1/2" tube fittings. A hinge clamp and centering ring form the vacuum seal between connecting flanges. Made of corrosion resistant 316 stainless steel.
Specifiactions
ISO-KF Flange Size: NW-40
0.50 in. Swagelok Weld Connector Ends, Tube Socket Weld Fittings.
Material: 316 Stainless Steel
