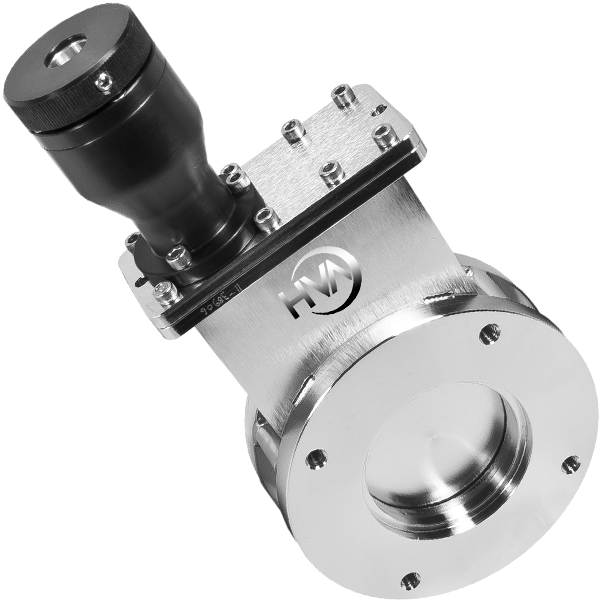

ISO-100 Bolt Down Flange with M8 x 1.25 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 63 vacuum flange with M8 x 1.25 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-0253. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.

ISO-100 Bolt Down Flange with M8 x 1.25 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 100 vacuum flange with M8 x 1.25 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-0403. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.

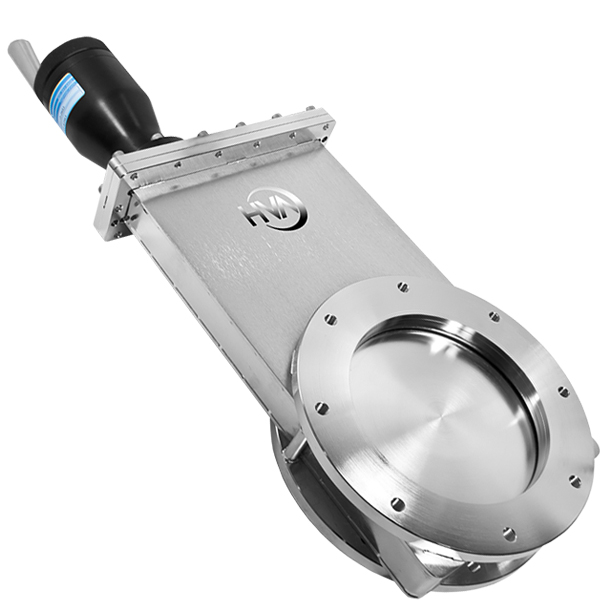

ISO-160 Bolt Down Flange with M10 x 1.50 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 160 vacuum flange with M10 x 1.50 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-0603. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.

ISO-200 Bolt Down Flange with M10 x 1.50 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 200 vacuum flange with M10 x 1.50 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-0803. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.

ISO-250 Bolt Down Flange with M10 x 1.50 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 250 vacuum flange with M10 x 1.50 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-1003. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.

ISO-320 Bolt Down Flange with M12 x 1.75 Threads. These HVA brand manually operated series 11000 gate valves are made in the U.S.A and have an ISO-F DN 320 vacuum flange with M12 x 1.75 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609. HVA Part Number: 11110-1203. HVA manually operated vacuum gate valves feature a positive lock-over center mechanism with gate, bonnet, and bellows seals of Viton fluorelastomer (FKM) material. They are made with corrosion resistant 304 stainless-steel gates and valve bodies and have a typical life of 100,000 cycles (depending on the process) before needing service.
