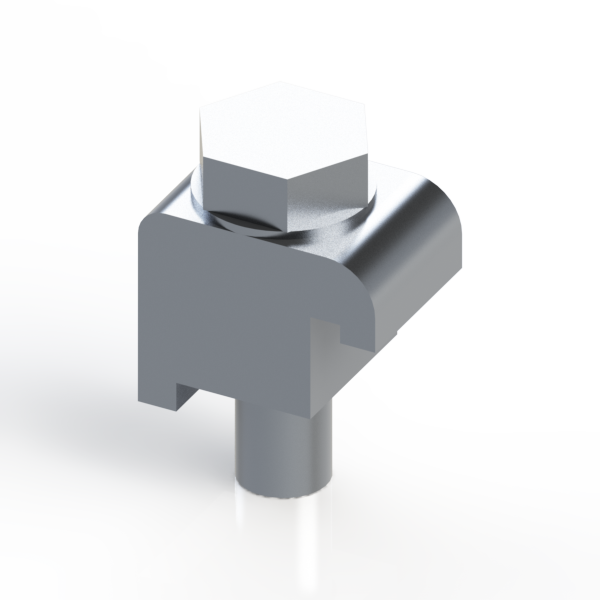

ISO-K Single Claw Clamp for ISO-K 160, 200, and 250, fits ISO-160K thru ISO-250K Vacuum Flanges, 35mm long M10-1.50 Bolt, Aluminum

These single claw clamps, made of Aluminum, are used to join a size NW 160 thru 250 ISO-K vacuum flange to an M10-1.50 mm tapped flange. These single clamps fit ISO-K DN 160 thru 250 vacuum flanges and follow vacuum technology standards described in DIN 28404 and ISO 1609. The ISO-K style fittings are quick to assemble using claw clamps (please see figure - click to enlarge) and can be connected in any orientation. The claw clamp hooks into a ridged groove in the back side of the ISO-K vacuum flange. The union requires a centering ring which contains rubber, elastomeric, O-ring to form the vacuum seal between the two flange faces. The clamps are commonly used to build process vacuum plumbing and systems for industrial vacuum applications. The ISO standard sizes for large LF flanges are ISO-LF DN 63, 80, 100, 160, 200, 250, 320, 400, 500, 630, 800, and 1000. These single claw clamps are made of aluminum and work with flange sizes ISO-LF 160, 200, and 250. The quantity of clamps required per flange size is given below.
