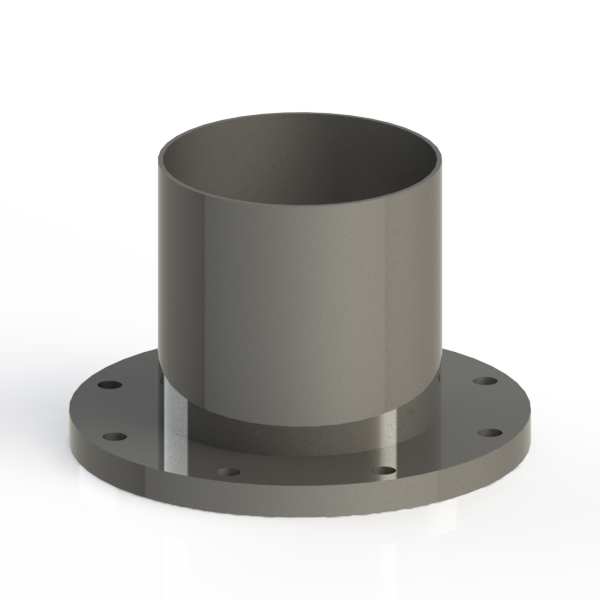

ISO-F DN 100 Half Nipple Short Weld Stub, 4 In. Long (100 mm), 4 Inch O.D. (101.6 mm) Tubing, Weld-On, Fixed Vacuum Flange, Through Holes, Bolted Type Flange, Stainless Steel.
These ISO-F DN 100 half nipple short weld stubs follow vacuum technology standards as described in DIN 28404 and ISO 1609. ISO-F fixed flange vacuum fittings have a bolt circle where bolts align the two flanges. A centering ring which contains a rubber elastomeric O-ring is used to form the vacuum seal between the two flange faces. They are commonly used to build process vacuum plumbing and systems for industrial vacuum applications. The ISO standard sizes for large LF flanges are ISO-F DN 63, 80, 100, 160, 200, 250, 320, 400, 500, 630. These vacuum fittings are made of corrosive resistant 304L stainless steel.
ISO-F 100 Half Nipple Short Weld Stub, 4 Inch O.D. (101.6 mm) Tubing, Flange Bolted Weld-On, Through Holes, 4.0 In. Long (100 mm),
ISO-F Flange Size: 100
Number Bolt Holes: 8
Common Dimensions: A = 6.50" (165.10 mm), B = 4.00" (101.6 mm), C = 3.94" (100.00 mm)
