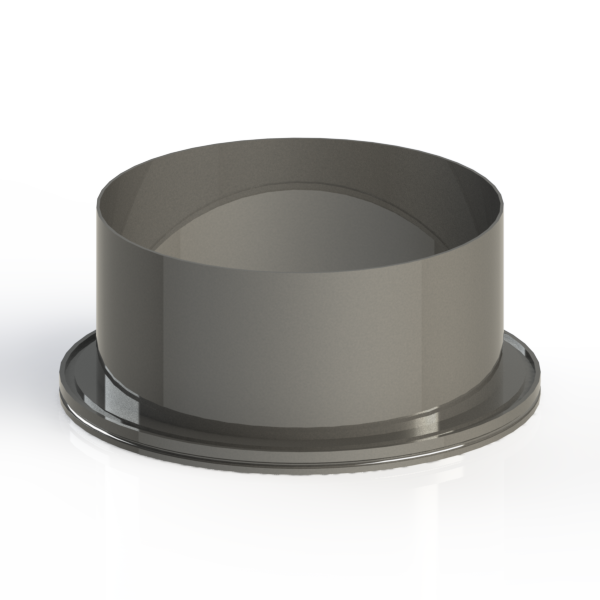

Half Nipple, NW-200 Vacuum Fittings, ISO-LF Large Flange Size NW-200, Stainless Steel

Half Nipple, NW-200 Vacuum Fittings, ISO-LF Large Flange Size NW-200, tube size 8 inch, Stainless Steel

These half nipple weld stubs follow International Standards Organization (ISO) standards and have a flange size of NW-200. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum flages are made of corrosive stainless steel.

Half Nipple, NW-200 Vacuum Fittings, ISO-LF Large Flange Size NW-200, Stainless Steel
ISO-LF Flange Size: NW-200
Dimensions: A=7.76in. B=8.00in. C=6.75in., tube size 8 inch
Material: Stainless Steel

Press ESC to Close

RoHS Compliance Download

P101719.sldprt

P101719.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
