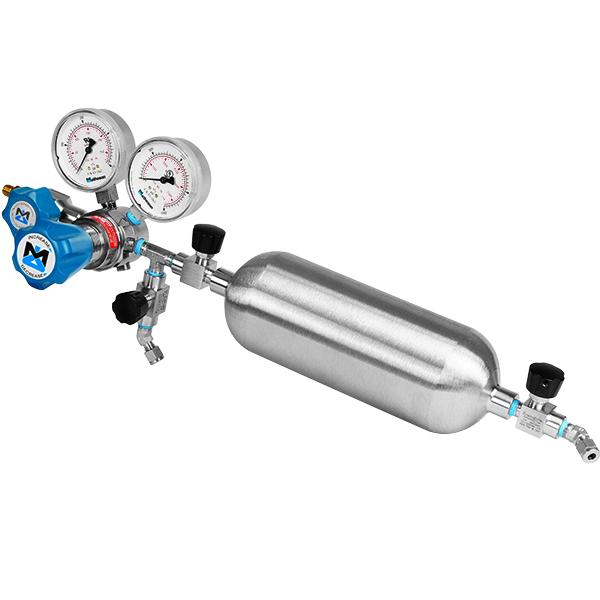

The Ideal Vacuum Gas Cylinder Mixing Assembly is designed to simplify the mixture of process gasses across a variety of applications. The system, complete with a gas regulator and gas regulator purge valve assembly, uses high pressure needle valves (up to 6000 PSI) to help precisely control gas flow into the mixture cylinder. The Cylinder equipped to this system is 304L stainless steel, has a wall thickness of 2.4mm, and can be pressurized up to a recommended maximum of 1800 PSI(@ 37°C). Cylinders with internal PTFE coating or internal electopolished finishes are also available on this website Cylinder maximum pressure rating varies by temperature. DO NOT pressurize cylinders over their respective temperature limits

The Ideal Vacuum Gas Cylinder Mixing Assembly is designed to simplify the mixture of process gasses across a variety of applications. The system, complete with a gas regulator and gas regulator purge valve assembly, uses high pressure needle valves (up to 6000 PSI) to help precisely control gas flow into the mixture cylinder. The Cylinder equipped to this system is 304L stainless steel, has a wall thickness of 2.4mm, and can be pressurized up to a recommended maximum of 1800 PSI(@ 37°C). Cylinders with internal PTFE coating or internal electopolished finishes are also available on this website Cylinder maximum pressure rating varies by temperature. DO NOT pressurize cylinders over their respective temperature limits

Cylinder Grade: DOT-3E-1800 The controlled delivery of gas-phase vapor from a liquid precursor is needed in the processes of Chemical Vapor Deposition (CVD), Metalorganic Chemical Vapor Deposition (MOCVD), and Atomic Layer Deposition (ALD). These liquid vapor gas delivery cylinders contain an integrated bubbler to help contain the precursor vapor in a flow of buffer gas. These vapor delivery cylinders are made of chemical resistant 316 stainless steel with ¼ turn ball valves at the inlet and exhaust. The cylinder is rated to withstand pressure up to 1800 PSI (@ 37°C).Cylinder maximum pressure rating varies by temperature. DO NOT pressurize cylinders over their respective temperature limits
