Home > FerroTec 1.75" Hollow Shaft, Reactive Gas and Water Cooled, 8" Ferro Flange Mount Diameter, Ferrofluidic seal, Rotary Feedthrough, Model HS-1750-CFFCWP. PN: 107425

Condition:

New

Part Number:

P1013726

Warranty:

Against Product Defect

Available Now: 1

RoHS Compliance Sticker

$6,237.00

Print Version

FerroTec 1.75" Hollow Shaft, Reactive Gas and Water Cooled, 8" Ferro Flange Mount Diameter, Ferrofluidic seal, Rotary Feedthrough, Model HS-1750-CFFCWP. PN: 107425

FerroTec 1.75" Hollow Shaft, Reactive Gas and Water Cooled, 8" Ferro Flange Mount Diameter, Ferrofluidic seal, Rotary Feedthrough, Model HS-1750-CFFCWP.
FerroTec PN: 107425.

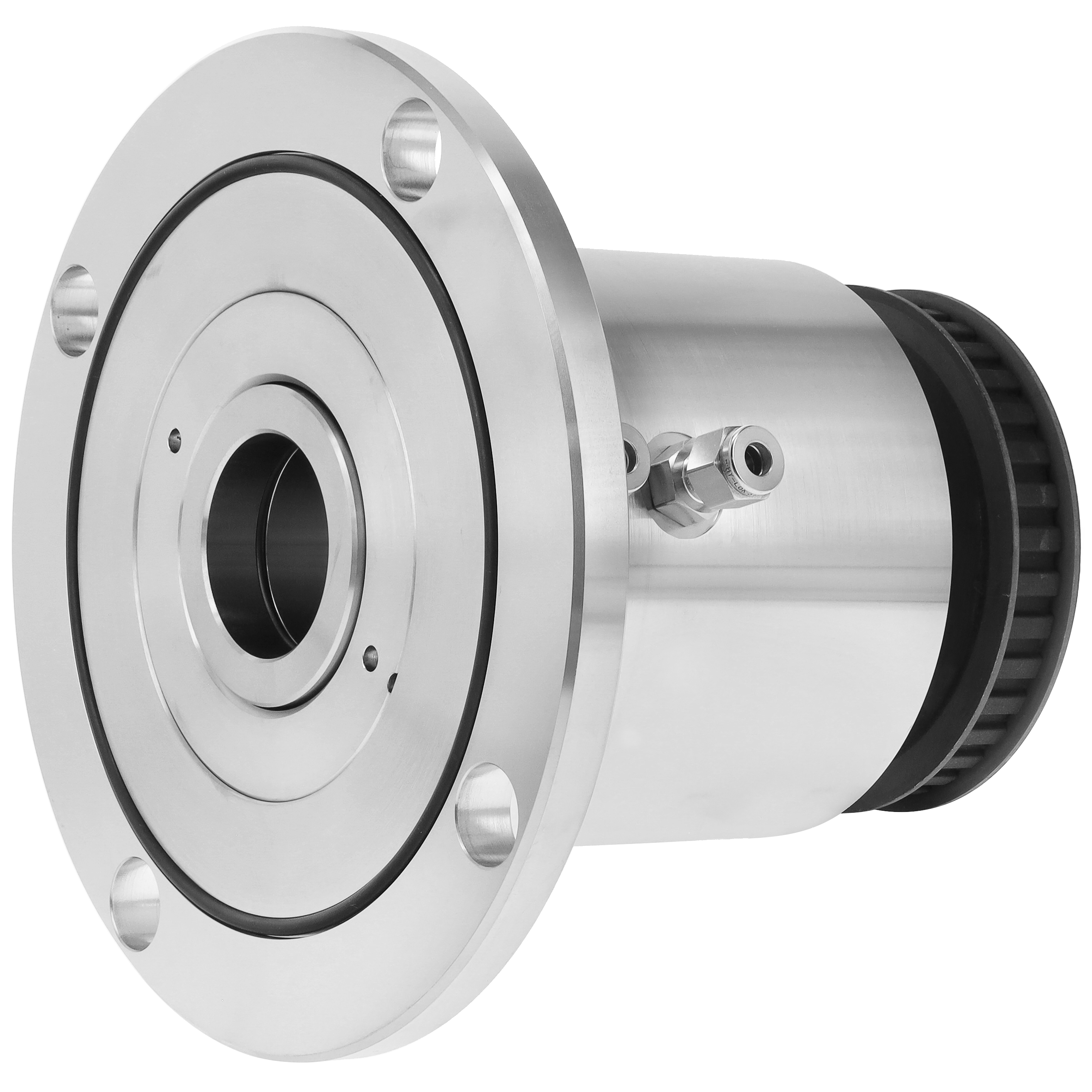

This is a 1.75" water cooled hollow shaft Ferrotec Ferrofluidic seal feedthrough model HS-1750-CFFCWP, Part Number: 107425. It is designed for standard and reactive environments like reactive thin film deposition process chambers. The flange thickness is 0.5", shaft starting torque at 100 rpm is 800 in-oz, and a running torque of 473 in-oz. the limiting speed is 1560 rpm.
Full dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

Press ESC to Close

RoHS Compliance Download

Ferrotec P1013726 data sheet

P1013726.sldprt

P1013726.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
