Edwards iXH 1220H HARSH Dry Vacuum Pump 200-230 VAC 50/60 hz 3 ph.

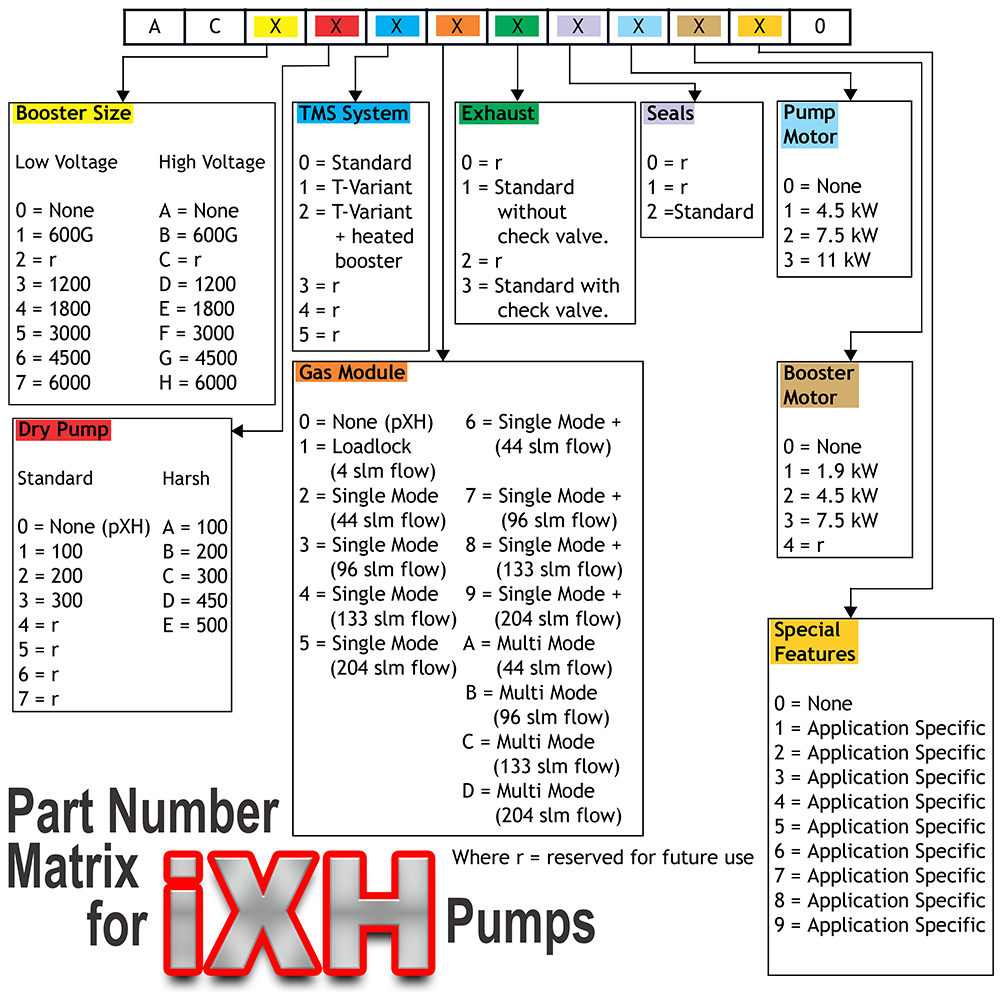

Edwards Part Number AC3B0A122200
The Edwards iXH 1220H is a new range of dry pumps built for green
manufacturing and the processing of harsh chemical processes. Using very low energy the efficient roots mechanism has
been developed to dramatically reduce input power to
1.3 kW, 60% lower than the previous generation of dry
pumps, reducing environmental impact and lowering cost of
ownership.
Gas barrier technology and thermal design improvements
enable four times greater corrosion resistance than iH Series
product. Advanced powder handling features mean iXH
will deliver maximum reliability and extended pump life for
multi-layer etch processes and reduced power consumption
for CVD processes especially with HARSH Chemicals.
The Edwards iXH 1220H Series Pumps are compact and of light-weight design, combined with
exceptionally low noise and vibration, makes iXH the
most versatile chemical dry pump in the Edwards range. iXH will
transform your expectations of dry vacuum pump technology,
deliver real benefits and increased uptime, with minimal
environmental impact. iXH pumps are designed for use in most semiconductor
processes while delivering significant reductions in input power.
For complete Instruction Manual see Downloads to the side.
FEATURES and BENEFITS:
- Primarily for HARSH Chemical Applications
- Peak Pumping Speed 1200 m3/h-1 (645 CFM)
- Ultimate Pressure 3.7 X 10-3 Torr
- No preventative maintenance required
- 3/8 inch Quick Connect Water Fillings
- Water & Power Connection Mating Halves
- SS Water Cooling System
- Multi Mode 44 slm Gas Module
APPLICATIONS:
- Load Lock
- Transfer
- Meteorology
- Lithography
- Physical Vapor Deposition PVD Process
- Physical Vapor Deposition PVD Pre-clean
- Rapid Thermal Anneal RTA
- Strip/Ashing
- Etching
- Implant Source
- High-Density Plasma Chemical Vapor Deposition HDP CVD
- Rapid Thermal Processing RTP
- Sub-Atmospheric Chemical Vapor Deposition SACVD
- Tungsten Chemical Vapor Deposition WCVD
- Modified Chemical-Vapor Deposition MCVD
- Plasma-Enhanced Chemical Vapor Deposition PECVD
- Low Pressure Chemical Vapor Deposition LPCVD
