Condition:
  New
Part Number:
  P107220
Warranty:
  Against Product Defect

Available Now:
2  

RoHS Compliance Sticker


$76.17


Print Version

Edwards Hinged Black Polymer Quick Vacuum Clamp, Flange Size KF10 KF16 PN C10512303


Edwards Hinged Black Polymer Quick Vacuum Clamp, Flange Size KF10 KF16 NW10 NW16
Edwards Part Number C10512303 (C105-12-303)


These KF-10 KF-16 Quick Clamp follow ISO-KF standards and have a flange size of NW-10 NW-16. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A hinged polymer clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50. They are made of Polymer.

KF-10 KF-16 Quick Clamp Polymor
ISO-KF Flange Size: NW-10 NW-16

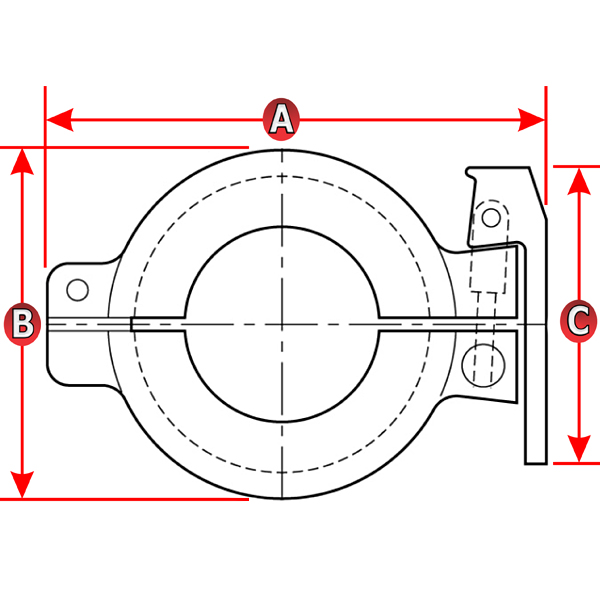

Common Dimensions: A=2.68" (68mm), B=1.57" (40mm), C=2.24" (57mm)


Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo IVP Common Vacuum Fittings - Selection and Assembly Guide.pdf

PDF Logo Ideal Vacuum Company Overview Brochure.pdf
