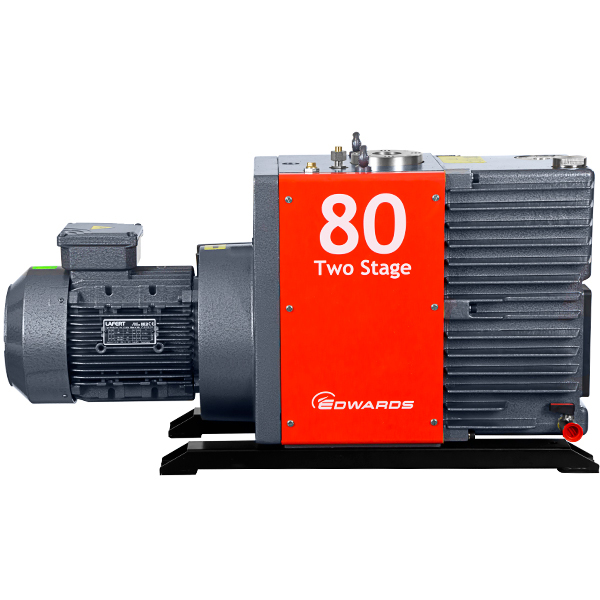

Edwards E2M80 Rotary Vane Dual Stage Mechanical Vacuum Pump, 200/380-440 50Hz, 208-230/440-480V 60Hz, PFPE Prepared.
Edwards Part Number A36517940 for IE3 EU/US Voltage.

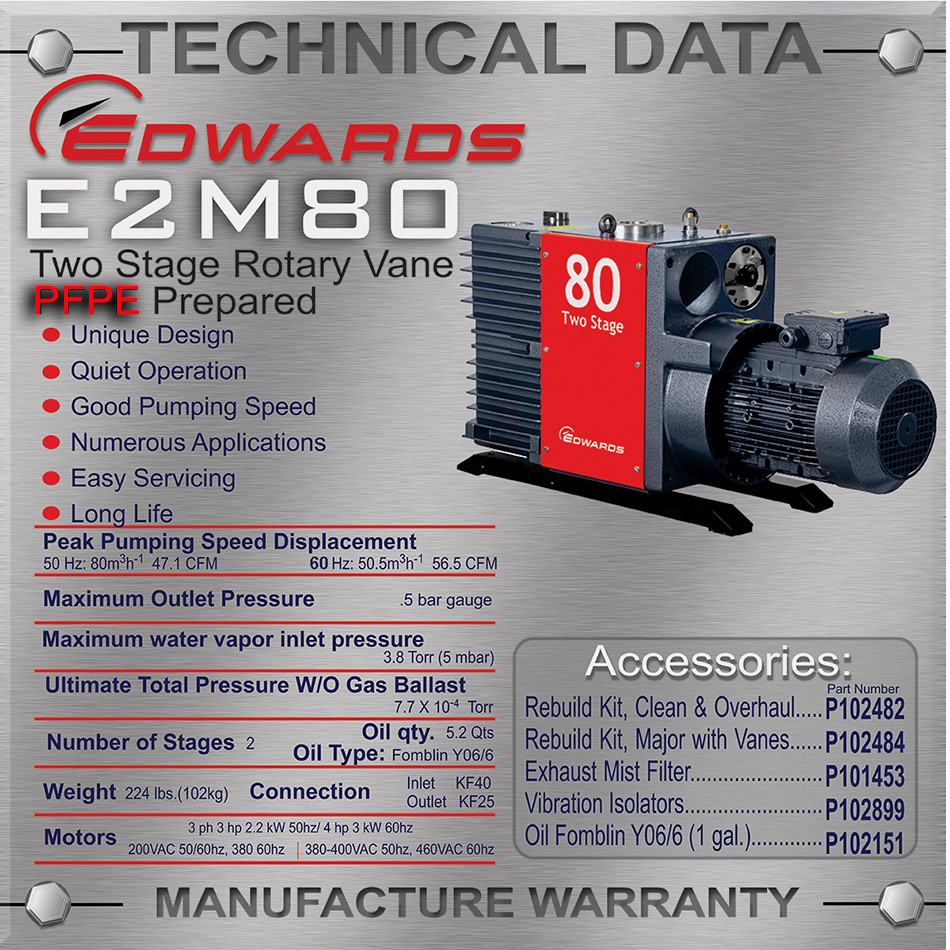

These Edwards E2M80 direct drive PFPE rotary vane pumps are inherently compact and vibration free with an ultimate pressure of 7.7x10-4 Torr and a pumping speed of 56.5 CFM at 60 Hz. These E2M80 Edwards vacuum pumps offer a finger-proof coupling housing and totally enclosed fan-cooled motors, which provide excellent operator protection. The Edwards E2M80's give the best combination of performance, reliability, and cost in their class.
The Edwards E2M80 dual stage rotary vane mechanical vacuum pumps have an advanced oil lubrication circuit and are very reliable with accessories to match any application. Applications include use with refrigeration dehydration, brake line evacuation, thin film coating, vacuum distillation, freeze drying, space simulation and other chemical processes. These brand new Edwards E2M80 dual stage PFPE rotary vane pumps comes with an Edwards manufacturer's warranty. Oil and accessories are also available. Part number A36517940.
Scroll down to AVAILABLE DOWNLOADS: and download the .pdf instruction manual.
