Condition:
  New
Part Number:
  P101928
Warranty:
  Edwards Warranty

Available Now:
2  



$11,009.15


Regular Price: $12,951.94

On Sale Flyer
Print Version

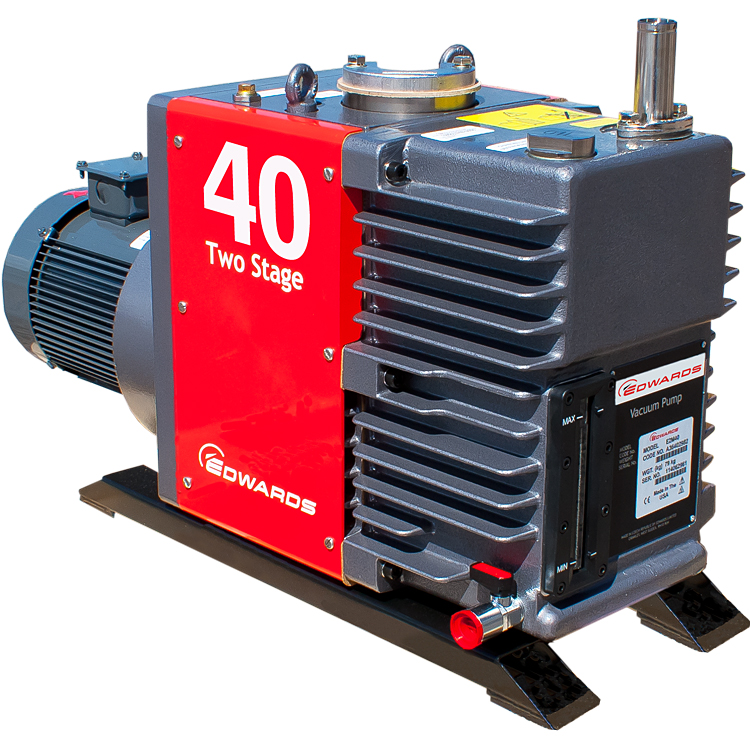

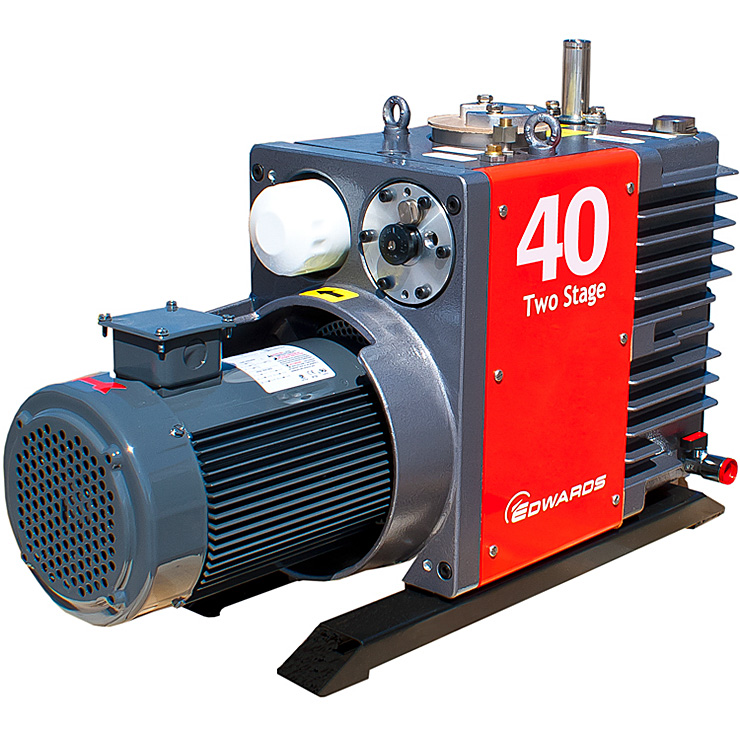

Edwards E2M40 Rotary Vane Dual Stage Mechanical Vacuum Pump, 200/380-440 50Hz, 208-230/440-480V 60Hz, PN: A36404940, IE3 EU/US Voltage


Edwards E2M40 Rotary Vane Dual Stage Mechanical Vacuum Pump, 200/380-440 50Hz, 208-230/440-480V 60Hz, IE3 EU/US
Edwards Part Number A36404940 (Replaces OLD PN: A36402982)


These Edwards E2M40 direct drive rotary vane pumps are inherently compact and vibration free with an ultimate pressure of 7.7x10-4 Torr and a pumping speed of 25.9 CFM at 60 Hz. These Edwards E2M40 vacuum pump offers a finger-proof coupling housing and totally enclosed fan-cooled motors, which provide excellent operator protection. The Edwards E2M40's give the best combination of performance, reliability, and cost in their class.

The Edwards E2M40 dual stage rotary vane mechanical vacuum pumps have an advanced oil lubrication circuit and are very reliable with accessories to match any application. Applications include use with refrigeration dehydration, brake line evacuation, thin film coating, vacuum distillation, freeze drying, space simulation and other chemical processes. These brand new Edwards E2M40 dual stage rotary vane pumps comes with an Edwards manufacturer's warranty. Oil and accessories are also available. Part number A36404940

Scroll down to AVAILABLE DOWNLOADS: and download the .pdf instruction manual.




Press ESC to Close


PDF Logo Edwards E1M40 E1M80 E2M40 & E2M80 Rotary Vane Pumps.pdf

PDF Logo Edwards E2M40 E2M80 Instruction Manual.pdf (for newer models)

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
