Condition:
  New
Part Number:
  P107171
Warranty:
  Full Manufacturer's Warranty

Available Now:
1  



$2,022.33


Print Version

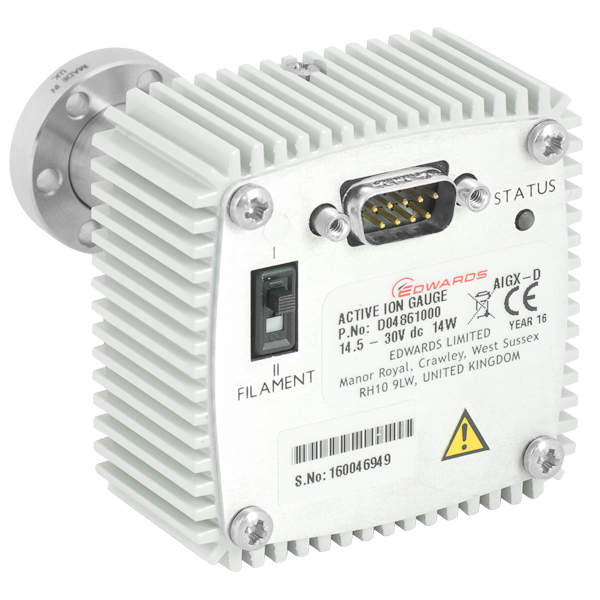

Edwards AIGX-D Active ION Gauge DN16CF Conflat CF 1.33 in., 10-2 to 10-10 Torr


Edwards AIGX-D Active ION Gauge dual yttria coated iridium filaments DN16CF Conflat CF 1.33 in. Flange. 10-2 Torr to 10-10 Torr
Edwards Part Number D04861000

The Edwards compact Active ion gauge with dual yttria coated iridium filaments, a wide measuring range from 5 x 10-2 Torr to 5 x 10-10 Torr and a 1 Volt/decade linear output. The new AIGX-D gauge from Edwards incorporates all the benefits of the industry standard Active gauging concept, with integral electronics and a user replaceable sensor tube. The gauge has a degas facility and includes features to protect and extend the life of the filaments. The AIGX-D benefits from extremely low emissions of charged particles, which makes it an excellent choice for processes where background noise is undesirable. Signal electrical cable (9-way "D" type male) and controller or power supply not supplied. For more specs and functions of this AIGX-D Active ION gauge, download the instruction manual .pdf below at AVAILABLE DOWNLOADS:

Features Include:
  • Full 8 decade pressure measurement from 5 x 10-2 to 5 x 10-10 Torr
  • Up to thirty fold reduction in charged particle process
    contamination compared to leading competitors
  • User interchangeable ion sensor tube
  • CSA, C/US approved
  • Automatic filament protection against switching on at
    ATM and running or degassing at high pressure



Press ESC to Close


PDF Logo Edwards AIGX-D Active ION Gauge Instruction Manual.pdf

PDF Logo Edwards Pressure Gauge Product Catalog.pdf
