Condition:
  New
Part Number:
  P103406
Warranty:
  Against Product Defect

Available Now:
6  

RoHS Compliance Sticker


$120.43


Print Version

EVAC Aluminum Metal Knife Edge Seal ISO 100 LF 100 for UHV Seal PN ISO-100-MS-A


EVAC Aluminum metal seal for converting elastomer (Viton/Buna) rubber seal ISO100, LF100 to UHV (Ultra High Vacuum) Seal - PN NW-100-MS-A

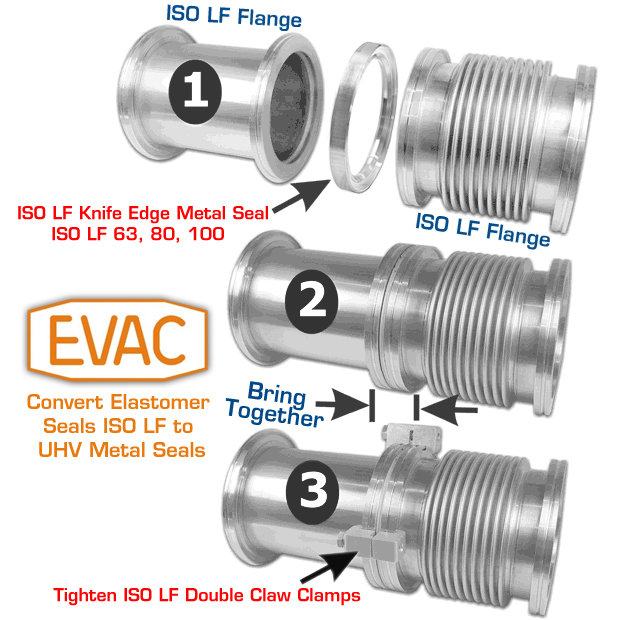

This EVAC Aluminum Metal Seal ISO100 LF100 flange is for converting Elastomer (Viton/Buna) rubber seals to UHV (Ultra High Vacuum) aluminum metal seals. This allows for a lower vacuum compared to elastomer (Viton/Buna) rubber seals. Other benefits include: reduced outgassing, no permeation , no hydrocarbons, and resistance to radiation and higher heat. The resultant UHV seal has a helium leak rate of less than 1 X 10 -11 standard cc/sec. They can also be baked repeatedly to 150°C (302°F). The ISO double or single claw clamps and an aluminum knife edge seal form the UHV vacuum seal between the connecting ISO LF flanges. (please see middle graphic above - click to enlarge). This EVAC metal seal is made of aluminum. This is a ISO100 LF100 aluminum metal knife edge seal only, the single or double claw clamps are NOT included but available on this website. For a complete explaination of this UHV Seal and dimensions of the ISO LF aluminum metal knife edge seal, download the EVAC Flange Brochure .pdf below.


Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo EVAC Flange Brochure.pdf
