Custom Vacuum Chambers Welded Stainless Steel 28 in, Preconfigured with CF Flanges, User Selectable Latching Door and Options

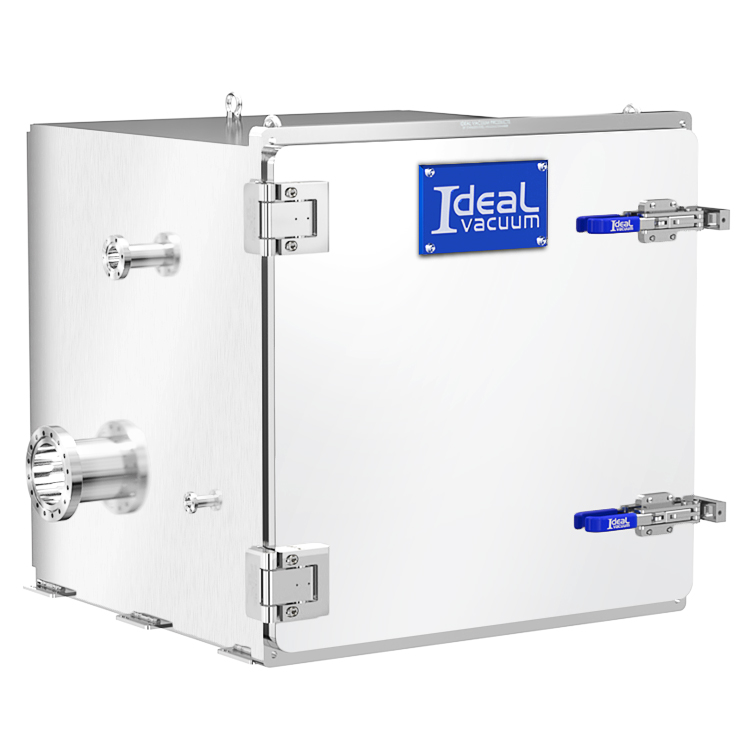

Ideal Vacuum Heavy Duty Stainless Steel 28x28 inch Cubic Chamber with CF Ports and Choice of Latched Door

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 28 x 28 x 28 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an aluminum or stainless steel door with the choice of a integrated window. For custom options please call (505) 872-0037.

Specifications

Interior Chamber Size: Approximately 28X28X28 inches (approx. 71X71X71cm)

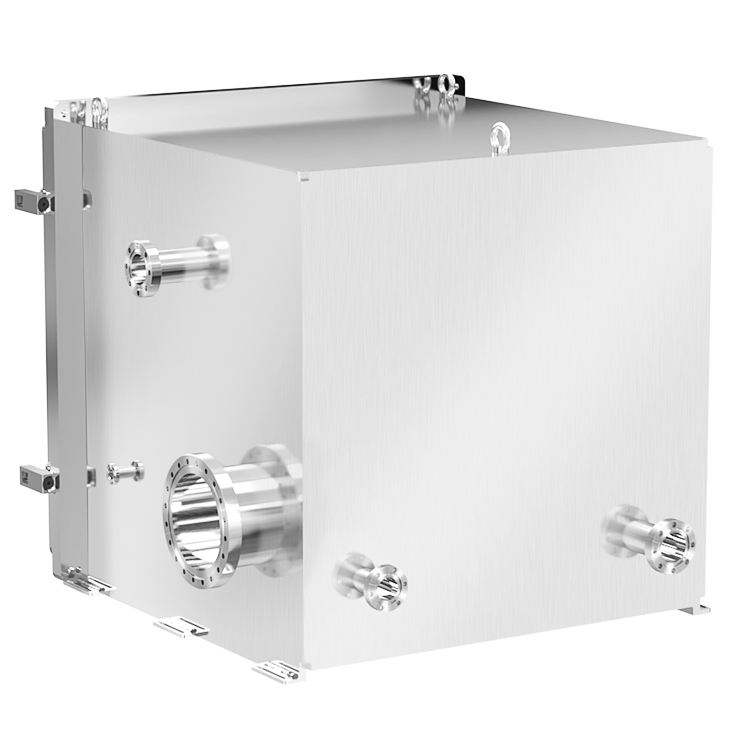

Ports Include: 1 x CF 8 in, 1 x CF 6 in, 3x CF 3.375 in, 2 x CF 2.75 in, 1 CF 1.33 in
Chamber Material: 304 Stainless Steel
Weight: 680 lbs (308.4 kg) without door
Volume: 13.25 cu. ft. (375.2 liters)
Hinged Front Door:Stainless Steel
Ultimate Pressure: 1x10^-7 Torr (Down to 3x10^-8 Torr with proper conditioning)
Leak Tested: (Helium) to 1x10^-8 atm cc/sec
Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
Lead Time: One to Two Weeks (7-14 days)
Call for additional porting options
Call for additional coating options
Call for expanded temperature range
