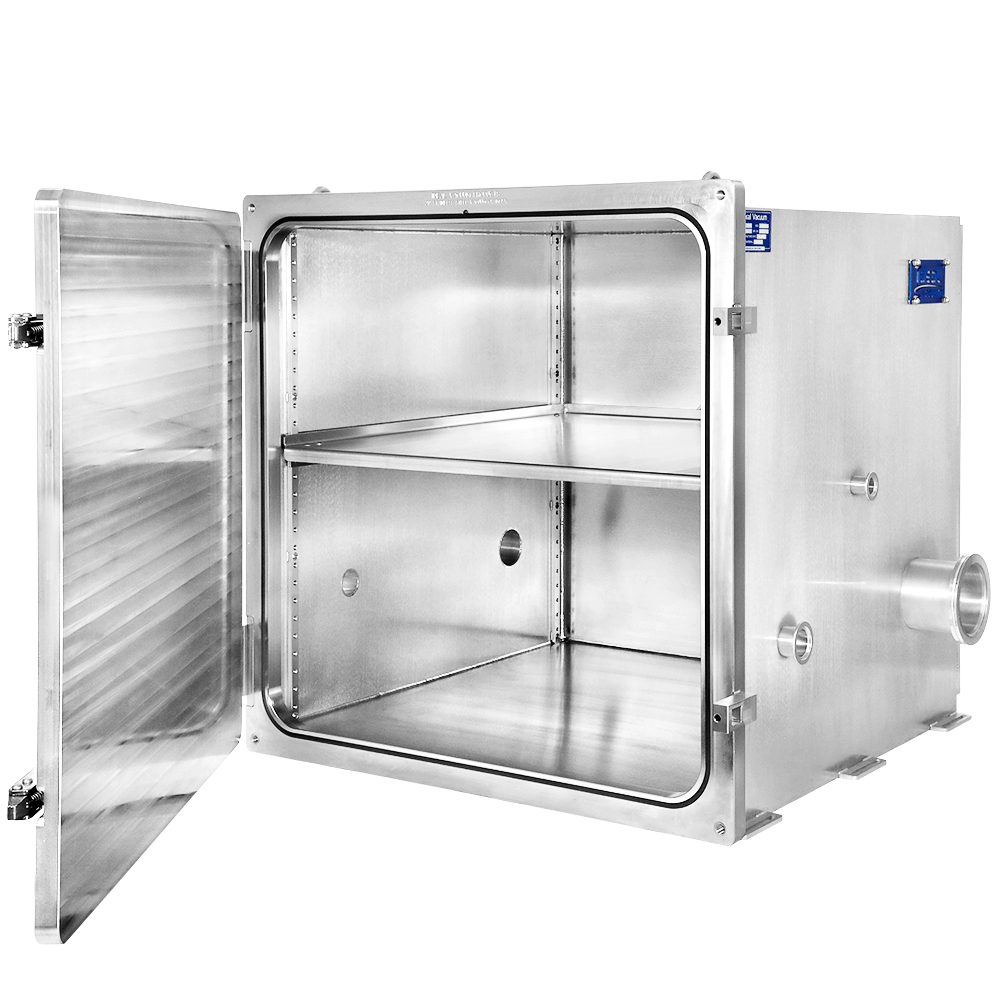

Shelving Rails



Print Version

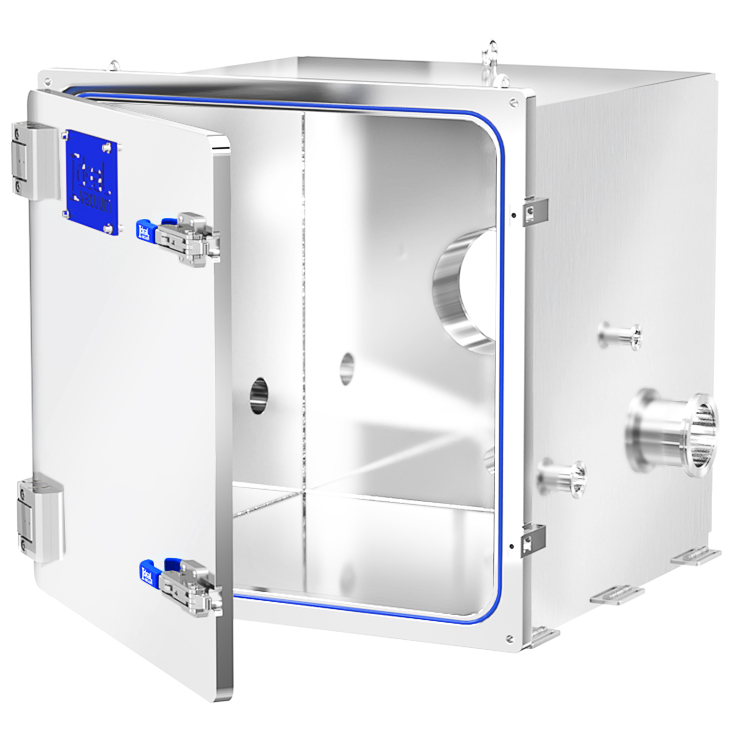

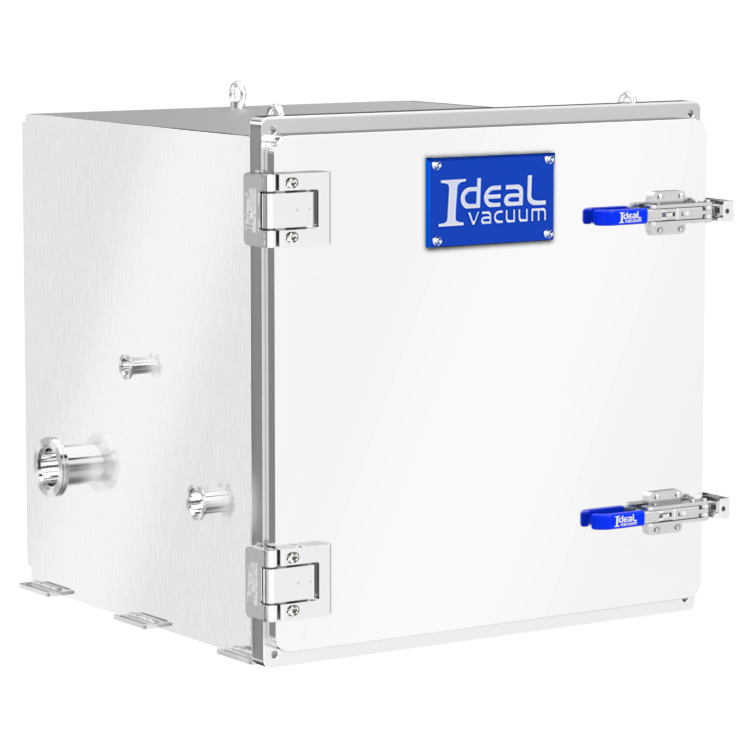

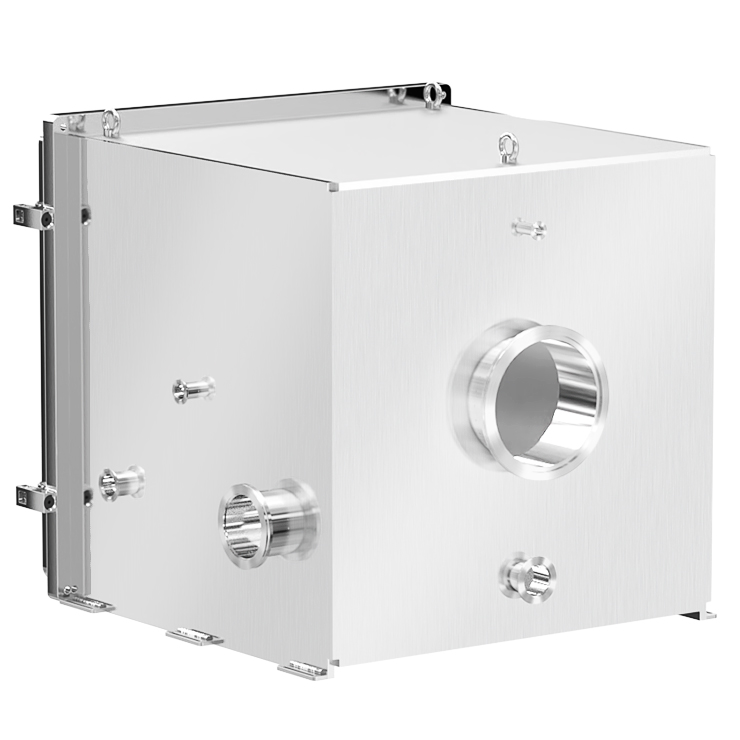

Custom Vacuum Chambers Welded Stainless Steel 28 in, Preconfigured with ISO and KF Flanges, User Selectable Latching Door and Options


Ideal Vacuum Heavy Duty Stainless Steel 28x28 inch Cubic Chamber with ISO and KF Ports and Choice of Latched Door

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 28 x 28 x 28 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an aluminum or stainless steel door with the choice of a integrated window. For custom options please call (505) 872-0037.

Specifications
  • Interior Chamber Size: Approximately 28X28X28 inches (approx. 71X71X71cm)
  • Ports Include: 1x ISO200, 1x ISO100 1x ISO63, 1x KF50, 2x KF40, 2x KF25, 1x KF16
  • Chamber Material: 304 Stainless Steel
  • Weight: 680 lbs (308.4 kg) without door
  • Volume: 13.25 cu. ft. (375.2 liters)
  • Hinged Front Door: Aluminum or Stainless Steel
  • Ultimate Pressure: 1x10-7 Torr (Down to 3x10-8 Torr with proper conditioning)
  • Leak Tested: (Helium) to 1x10-8 atm cc/sec
  • Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
  • Lead Time: One to Two Weeks (7-14 days)
  • Door Type:Stainless Steel
  • Call for additional porting options
  • Call for coating options
  • Call for expanded temperature range


Press ESC to Close

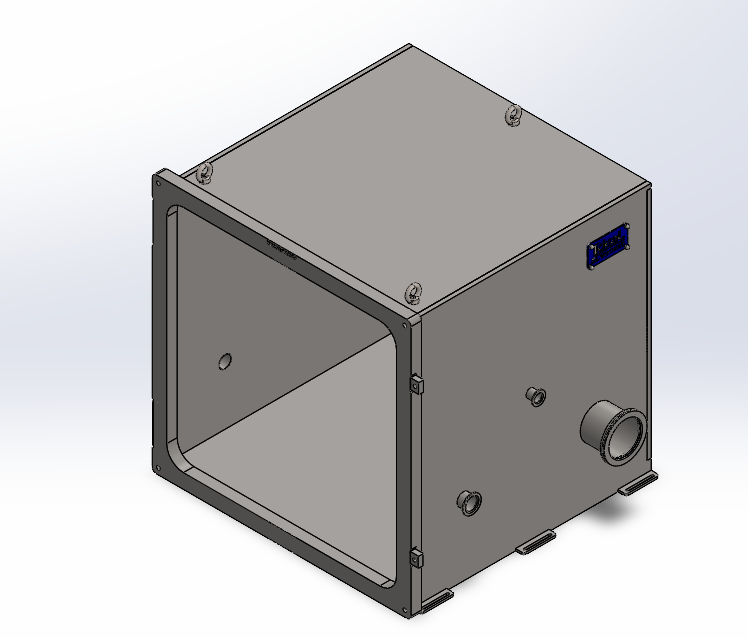

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
