Custom Vacuum Chambers Welded Stainless Steel 16x16x24 inch, Preconfigured with ISO and KF Flanges, User Selectable Latching Door and Options

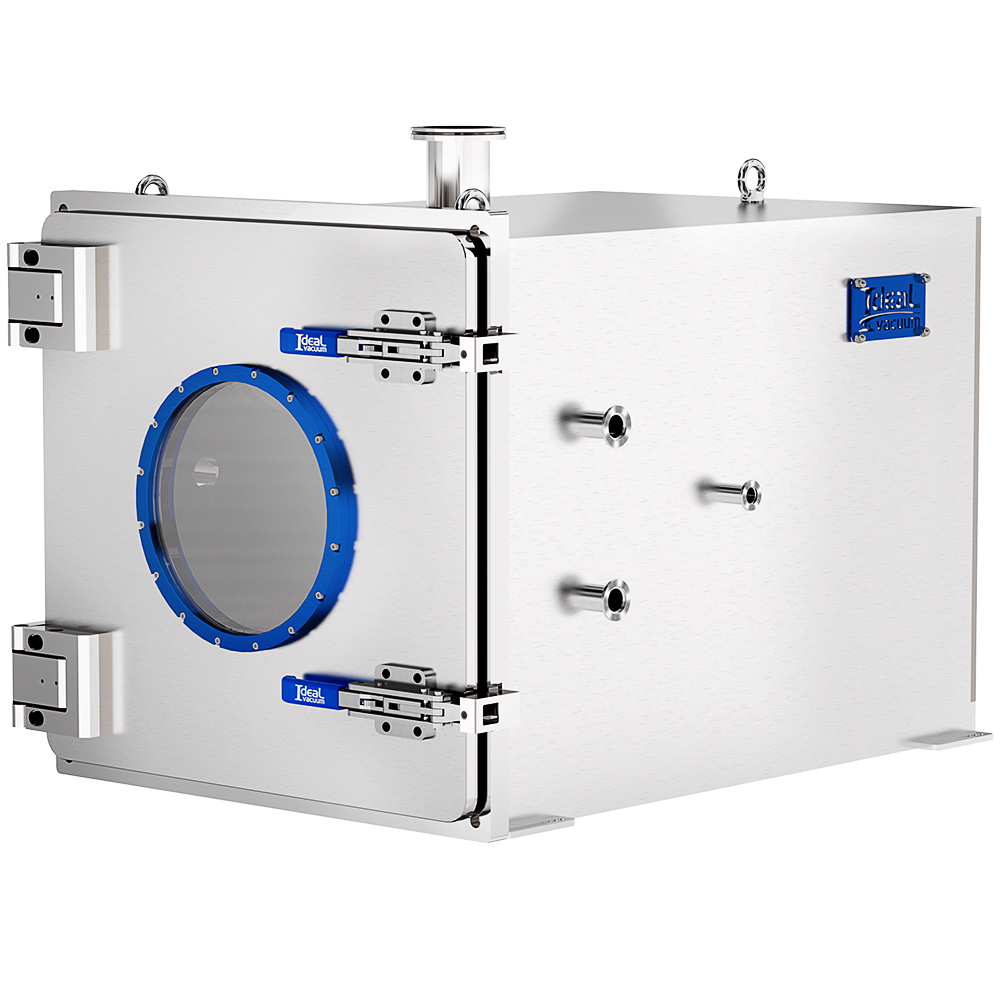

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 16x16x24 inches, all of these chambers are made with corrosion resistant 304 stainless steel plate. These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with a built-in viewing port. For custom options please call (505) 872-0037.

16"x16"x24" CHAMBER SPECIFICATIONS
Interior Chamber Size	Approximately 16x16x24 inches (approx. 41x41x61cm)

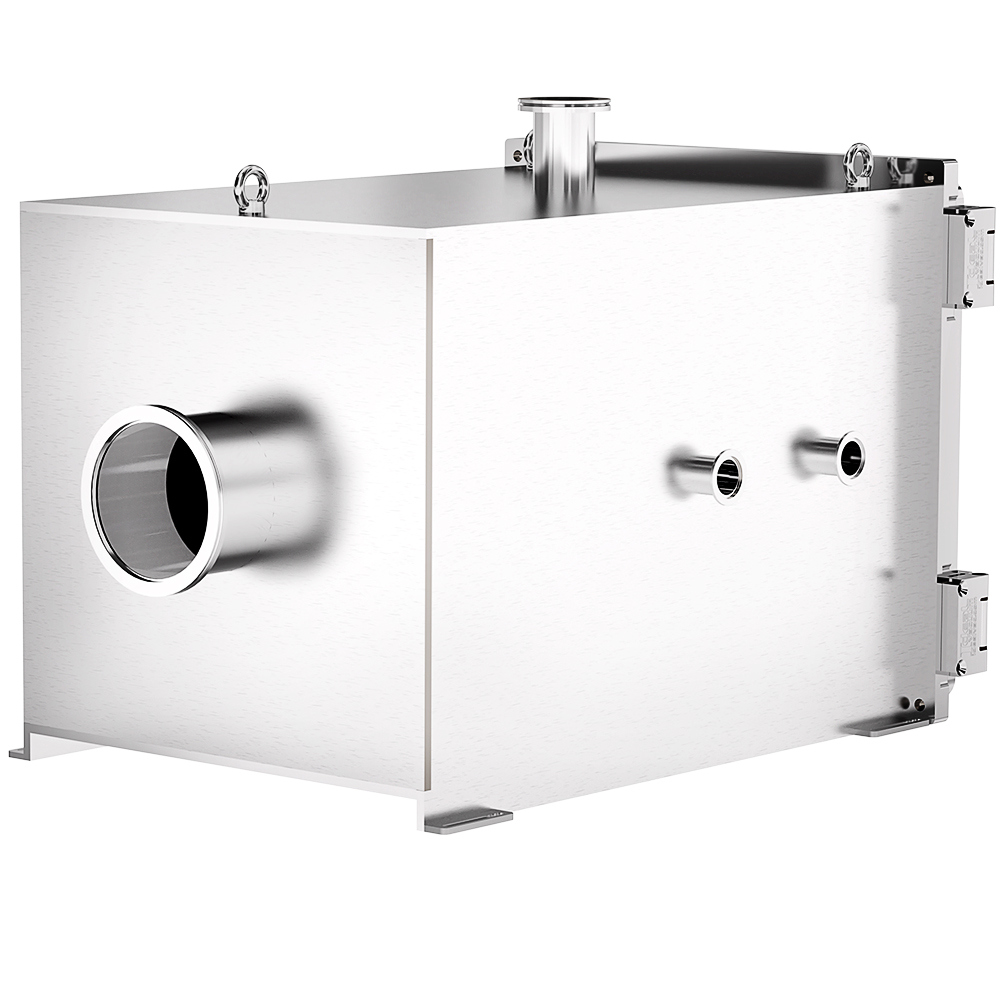

Ports Include	1x ISO160 1x ISO63, 2x KF40, 2x KF25, 1x KF16
Chamber Material	304 Stainless Steel
Weight	225 lbs (102 kg) w/o door
Volume	3.55 cu. ft. (100 liters)
Hinged Front Door	Aluminum
Ultimate Pressure	1x10-6 Torr (High Vacuum)
Leak Tested	(Helium) to 1x10-8 atm cc/sec
Operating Temperature Range (Viton Seal)	5° to 302°F (-15° to 150°C)
Lead Time	One to Two Weeks (7-14 days)
Call for additional porting options or for expanded temperature range Call for additional coating options
