Custom Vacuum Chambers Welded 6061-T6 Aluminum 20 in, Preconfigured with ISO and KF Flanges, User Selectable Latching Door and Options

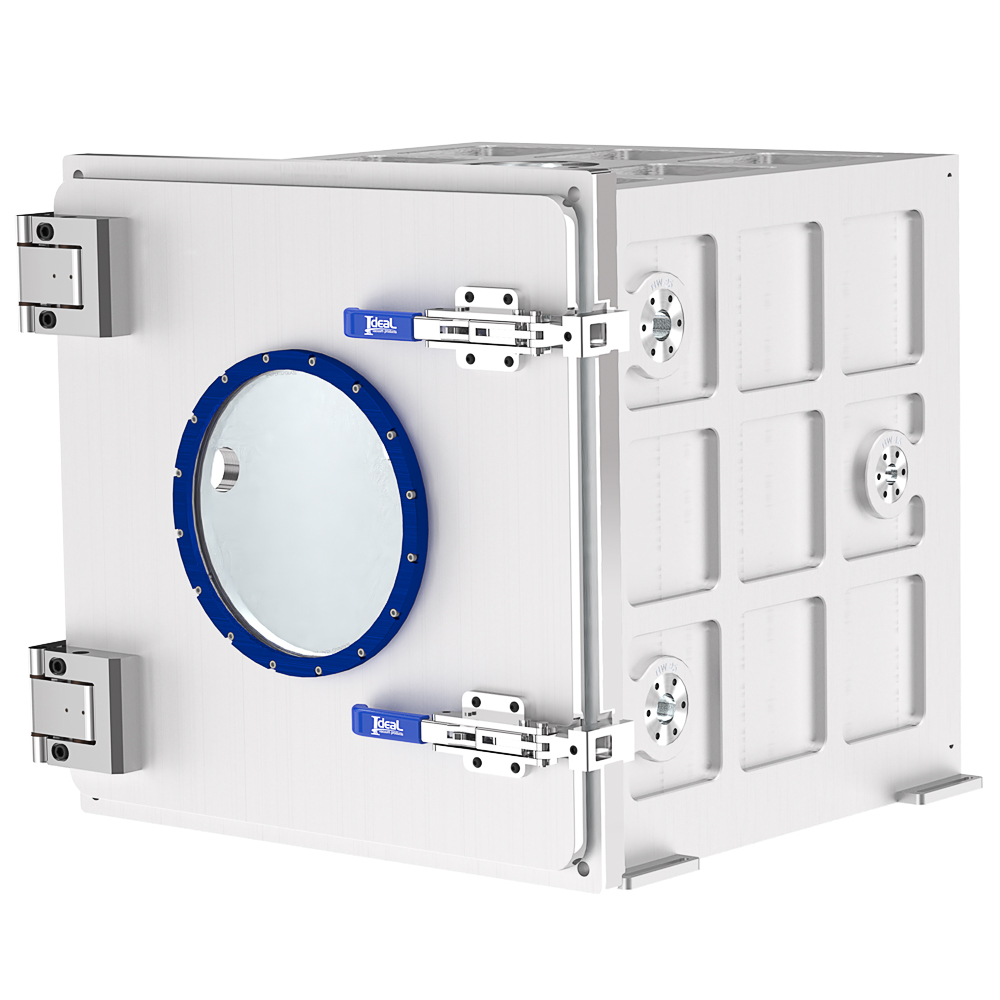

Ideal Vacuum Heavy Duty 6061-T6 Aluminum 20 inches Cubic Vacuum Chamber Preconfigured KF and ISO Flanges and User Selectable Latching Door

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 20x20x20 inches, all of these cubic chambers are made with 6061-T6 Aluminum plate. These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and aluminum or stainless steel door with a built-in viewing port. For custom options please call (505) 872-0037.

20" CHAMBER SPECIFICATIONS
Interior Chamber Size Approximately 20x20x20 inches (approx. 51x51x51cm)
Ports Include 1 KF16, 2 KF25, 2 KF40, 1 ISO-63, 1 ISO-160
Chamber Material 6061-T6 Aluminum
Weight 280 lbs (127 kg) w/o door
Volume 4.8 cu. ft. (137.3 liters)
Hinged Front Door Aluminum, Stainless Steel, Acrylic or Built-in Viewing Port
Ultimate Pressure 1x10-6 Torr (High Vacuum)
Leak Tested (Helium) to 1x10-8 atm cc/sec
Operating Temperature Range (Viton Seal) 5° to 302°F (-15° to 150°C)
Lead Time One to Two Weeks (7-14 days)
Call for additional porting options or for expanded temperature range
