Home > Fittings and Flanges > ISO LF Fittings And Adapters > Cross, 4 Ways > Cross 4-Way, NW-100-H Vacuum Fitting, height 216mm, ISO-LF Large Flange Size NW-100, Stainless Steel

Condition:

New

Part Number:

P101693

Warranty:

Against Product Defect

Available Now: 1

RoHS Compliance Sticker

$922.92

Print Version

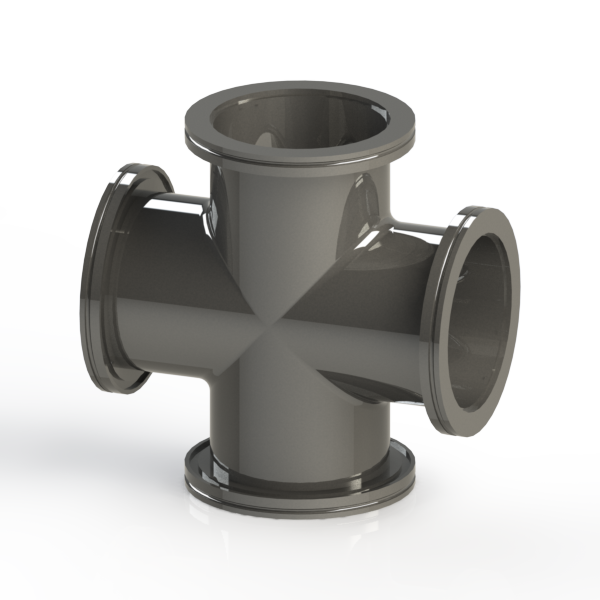

Cross 4-Way, NW-100-H Vacuum Fitting, height 216mm, ISO-LF Large Flange Size NW-100, Stainless Steel

Cross 4-Way, NW-100-H Vacuum Fitting, 216mm, ISO-LF Large Flange Size NW-100, Stainless Steel

These four-way crosses follow International Standards Organization (ISO) standards and have a flange size of NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.

Cross 4-Way, NW-100 Vacuum Fitting, ISO-LF Large Flange Size NW-100, Stainless Steel
ISO-LF Flange Size: NW-100
Common Dimensions: A = 4.25" (108mm), B = 8.5" (216mm)

Press ESC to Close

RoHS Compliance Download

P101693.sldprt

P101693.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
