Home > Fittings and Flanges > Conflat Fittings And Flanges > Gaskets, Copper > Conflat Flange (CF) Copper Gaskets CF Size 2 1/8, 2.125 inch - 1 each

Condition:

New

Part Number:

P104337

Warranty:

Against Product Defect

Available Now: 234

RoHS Compliance Sticker

$7.08

Print Version

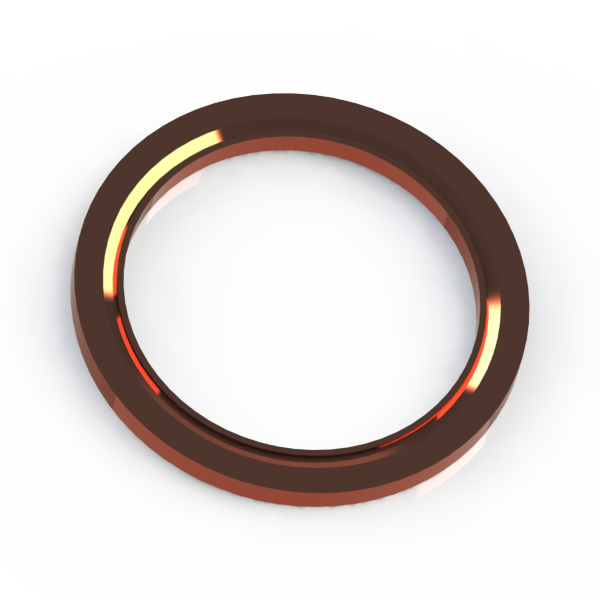

Conflat Flange (CF) Copper Gaskets CF Size 2 1/8, 2.125 inch - 1 each

Conflat Flange (CFF) Copper Gaskets CF Size 2 1/8" - 1 each

These conflat copper conflat gaskets fit a conflat flange size of 2 1/8 inches. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10^-13 torr (10^-11 Pa) and can be heated to 450°C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.

Conflat Flange (CF) Copper Gaskets CF Size 2 1/8" - 1 each
CF Flange Size: CF 2 1/8 inch, 2.125
Common Dimensions: Flange Outer Diameter (OD) 2 1/8", Gasket Outer Diameter (OD) 1.25", Gasket Inner Diameter (ID) 1.00"

Press ESC to Close

RoHS Compliance Download

P104337.sldprt

P104337.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
