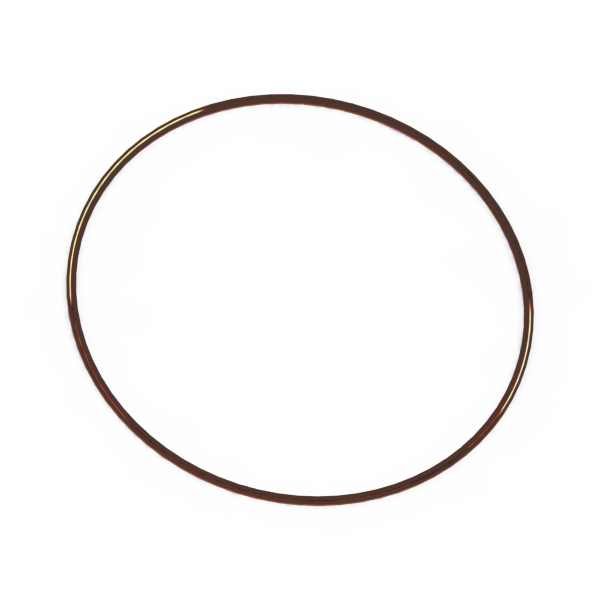

Conflat Flange (CF) Copper Gaskets CF Size 14 inch - 1 each

Conflat Flange (CF) Copper Gaskets CF Size 14"

These conflat copper conflat gaskets fit a conflat flange size of 14 inches. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10^-13 torr (10^-11 Pa) and can be heated to 450°C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½ , in Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.

Conflat Flange (CF) Copper Gaskets CF Size 14" - Quantity 1
CF Flange Size: CF 14 inch
Common Dimensions: Flange Outer Diameter (OD) 14", Gasket Outer Diameter (OD) 12.31", Gasket Inner Diameter (ID) 11.8"

Press ESC to Close

RoHS Compliance Download

P105530.sldprt

P105530.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
