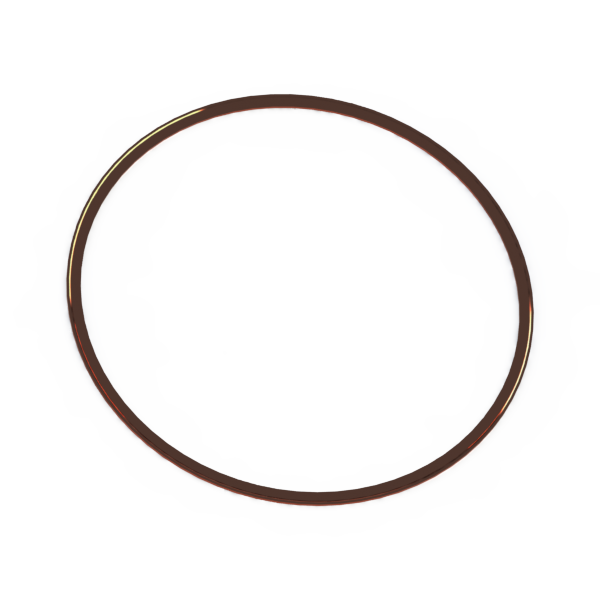

Conflat Flange (CF) Copper Gaskets CF Size 13-1/4 inch - 1 each

Conflat Flange (CF) Copper Gaskets CF Size 13-1/4" - 1 each

These conflat copper conflat gaskets fit a conflat flange size of 13-1/4 inches. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10^-13 torr (10^-11 Pa) and can be heated to 450°C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½, in Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.

Conflat Flange (CF) Copper Gaskets CF Size 13-1/4" - Quantity 1
CF Flange Size: CF 13-1/4 inch
Common Dimensions: Flange Outer Diameter (OD) 13-1/4", Gasket Outer Diameter (OD) 11.55", Gasket Inner Diameter (ID) 10.84"

Press ESC to Close

RoHS Compliance Download

P102286.sldprt

P102286.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:
