Centering Ring, Spacer and Screen, LF-160, ISO NW160 Vacuum Fittings, Stainless Steel with Viton O-Ring LF-160 Vacuum Fittings.
These centering rings with a screen are used to filter the vacuum flow and keep objects from being sucked into your vacuum pump. They follow International Standards Organization (ISO) standards and have a flange size of LF-160, NW ISO-160. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring. The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are LF-63, LF-80, LF-100, LF-160. These vacuum fittings are made of corrosive resistant 304 stainless steel and Stainless Steel 72 Mesh.

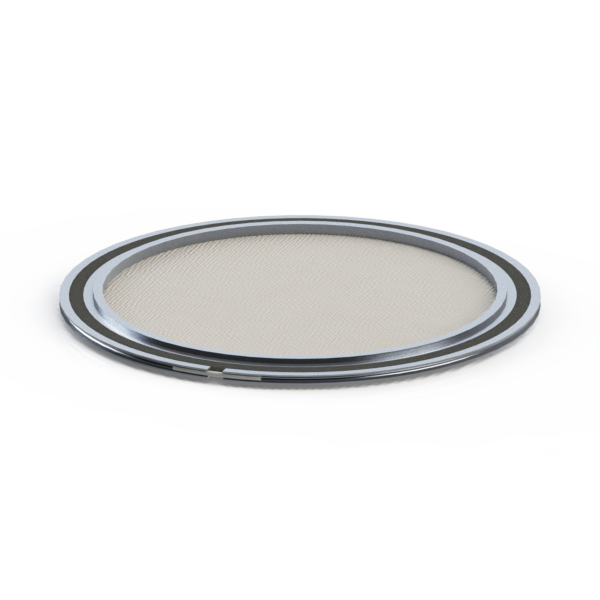

Centering Ring with Screen, ISO NW-160, LF-160 Vacuum Fittings, Stainless Steel with Viton® O-Ring
ISO-LF Flange Size: LF-160
Common Dimensions:
A = 5.77" (99mm)
B = 0.15" (4mm)
Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
eDrawings Viewer For Windows
