Centering Ring Assembly DN 100 ISO-LF, with Removable 30 Mesh Screen, ISO-100 Stainless Steel & Viton O-Ring
These DN 100 ISO-LF centering rings with removeable 30 mesh screen and Viton O-ring follow ISO-LF standards and have a flange size of ISO-100. The screen in these centering rings is secured by a snap ring. These centering rings are useful in many situations in which a vacuum system or instrument needs to be protected from contamination by particulates generated from outside the system or from within. They are commonly used in between a turbo pump and foreline. These corrosion resistant stainless steel centering rings have an external Viton O-ring attached. VitonŽ is well known for its excellent resistance to heat (400°F/200°C) and to aggressive fuels and chemicals. VitonŽ is a registered trademark of DuPont Performance Elastomers.

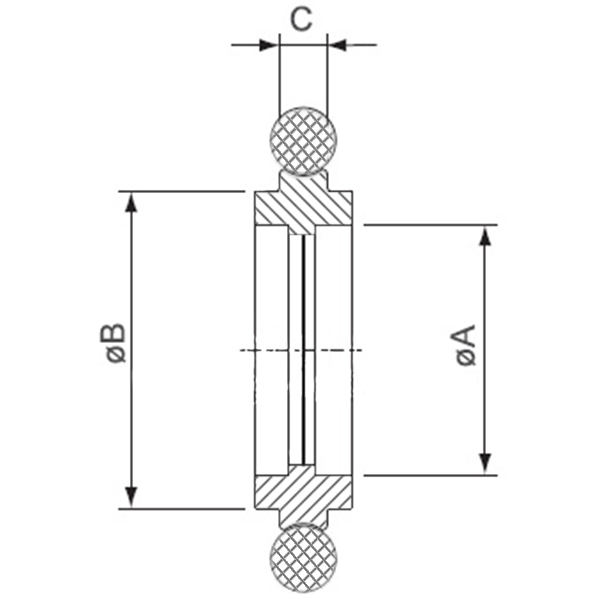

Dimensions:
A= 91.8 mm
B= 101.6 mm
C= 3.9 mm
Sieve Size=0.5 mm

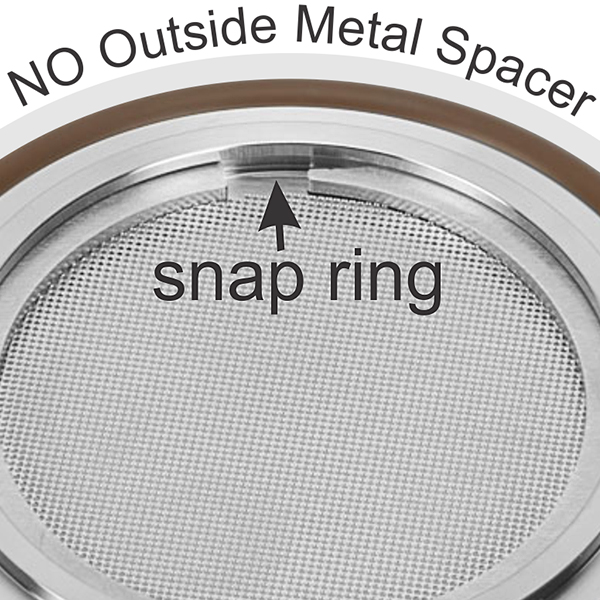

Centering Ring Assembly DN 100 ISO-LF, with Removable Screen, and NO outside spacer, ISO-100 Stainless Steel & VitonŽ O-Ring
