CommandValve Smart Electronic Butterfly Valve with Conflat CF 1.33" Flange and Viton Seals, Manual or USB Serial Operation
In Stock: 2


The Ideal Vacuum Products (IVP) series of CommandValves are smart electronic butterfly valves. They are a reliable, low-cost alternative to manual or pneumatic gate valves. CommandValves are operated either manually using onboard pushbutton controls, or by computer control via an integrated USB virtual serial port. These smart butterfly valves allow for open, closed, or partially open operation (users can select any angle between, fully open and completely closed). This makes CommandValves an excellent solution for vacuum system integration, remote valve placement, automation, and control, and precision throttling. These IVP exclusive high flow butterfly valves feature a small footprint, the shortest possible gas path, high accuracy, fast closure time (~270ms), and typical leak rate of 1 x 10

Condition: New



Product Number: P108517



Price: $1,151.12



CommandValve Smart Electronic Butterfly Valve with Conflat CF 2.125" Flange and Viton Seals, Manual or USB Serial Operation
In Stock: 10


The Ideal Vacuum Products (IVP) series of CommandValves are smart electronic butterfly valves. They are a reliable, low-cost alternative to manual or pneumatic gate valves. CommandValves are operated either manually using onboard pushbutton controls, or by computer control via an integrated USB virtual serial port. These smart butterfly valves allow for open, closed, or partially open operation (users can select any angle between, fully open and completely closed). This makes CommandValves an excellent solution for vacuum system integration, remote valve placement, automation, and control, and precision throttling. These IVP exclusive high flow butterfly valves feature a small footprint, the shortest possible gas path, high accuracy, fast closure time (~270ms), and typical leak rate of 1 x 10

Condition: New



Product Number: P108436



Price: $1,179.03



CommandValve Smart Electronic Butterfly Valve with Conflat CF 2.75" Flange and Viton Seals, Manual or USB Serial Operation
In Stock: 17


The Ideal Vacuum Products (IVP) series of CommandValves are smart electronic butterfly valves. They are a reliable, low-cost alternative to manual or pneumatic gate valves. CommandValves are operated either manually using onboard pushbutton controls, or by computer control via an integrated USB virtual serial port. These smart butterfly valves allow for open, closed, or partially open operation (users can select any angle between, fully open and completely closed). This makes CommandValves an excellent solution for vacuum system integration, remote valve placement, automation, and control, and precision throttling. These IVP exclusive high flow butterfly valves feature a small footprint, the shortest possible gas path, high accuracy, fast closure time (~270ms), and typical leak rate of 1 x 10

Condition: New



Product Number: P108437



Price: $1,220.89

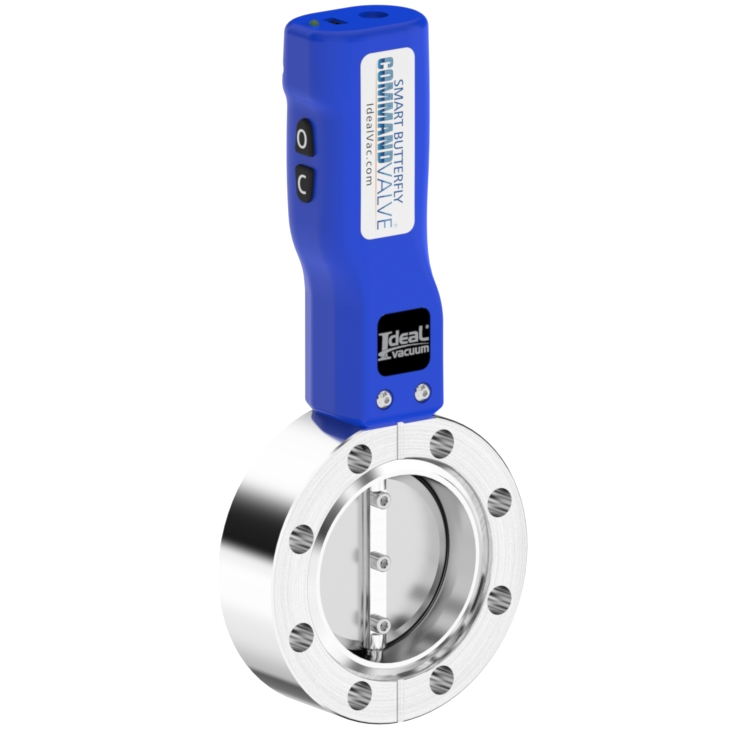

CommandValve Smart Electronic Butterfly Valve with Conflat CF 3.375" Flange and Viton Seals, Manual or USB Serial Operation
Out of Stock
Arrival: 10 on 2024-12-21


The Ideal Vacuum Products (IVP) series of CommandValves are smart electronic butterfly valves. They are a reliable, low-cost alternative to manual or pneumatic gate valves. CommandValves are operated either manually using onboard pushbutton controls, or by computer control via an integrated USB virtual serial port. These smart butterfly valves allow for open, closed, or partially open operation (users can select any angle between, fully open and completely closed). This makes CommandValves an excellent solution for vacuum system integration, remote valve placement, automation, and control, and precision throttling. These IVP exclusive high flow butterfly valves feature a small footprint, the shortest possible gas path, high accuracy, fast closure time (~270ms), and typical leak rate of 1 x 10

Condition: New



Product Number: P108438



Price: $1,248.80



USB-A Male to USB-A Female Extension Cable, Extends Distance Between Any CommandValve and PC by 3m (10 ft.)
In Stock: 32


This 10 ft. (3m) long cable extends the distance between a CommandValve and a computer. The cable has one USB-A male end, and one USB-A female end. The CommandValve comes with a 3 ft. cable. This extension cable increases the total distance to 13 ft.

Condition: New



Product Number: P1012818



Price: $20.14



USB-A Male to USB-B Mini Replacement Connection Cable, Connects Any CommandValve to PC, 1m (3 ft.)
In Stock: 106


These replacement USB-A to mini USB-B connection cables are used to connect a CommandValve to a computer. The valve comes standard with this cable. Use this to replace a damaged or faulty one. The DirectVac software, which comes standard with every CommandValve, can accurately and precisely control the position of the butterfly and requires a direct computer connection.

Condition: New



Product Number: P108977



Price: $16.36



CommandValve AC/DC Universal Power Supply Replacement, Input 100-240 VAC, Output 12 VDC, 3A
In Stock: 93


This is a universal AC to DC power supply for all smart butterfly CommandValves (KF and CF series). Input 100-240 VAC. Output 12 VDC@3A. This wall adapter has fixed blades. The cord is 6 ft. long and has a DC barrel plug with 5.5 mm OD and 2.1 mm center pin. Polarity is center positive. All CommandValves packages include this AC/DC adapter and a 3 ft. USB-A to USB-B mini cable. Use this power supply to replace a damaged or misplaced unit.

Condition: New



Product Number: P108978



Price: $51.49

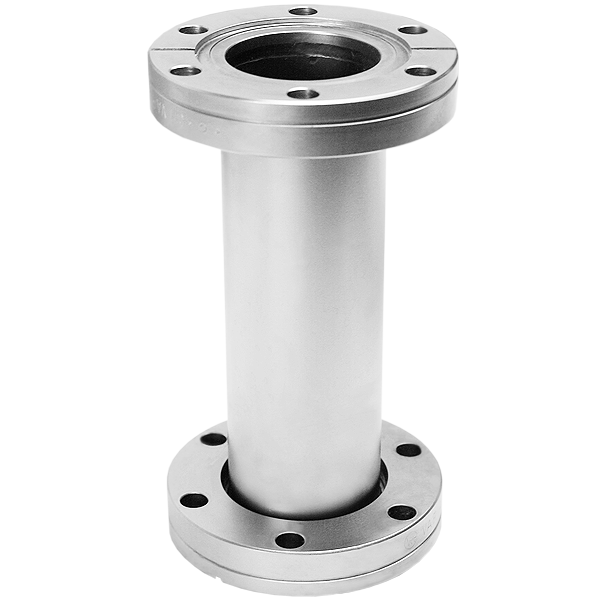

Conflat Flange (CF) Full Nipple, CF 2-3/4 inches, 5 in. Long, Stainless Steel Fittings
In Stock: 35
Expecting: 58
Arrival: 58 on 2024-11-29


These full nipple vacuum fittings have one rotatable and one fixed 2-3/4 inch conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.Conflat Flange (CF) Full Nipple, CF 2-3/4 inches, Stainless Steel

Condition: New



Product Number: P102207



Price: $138.13

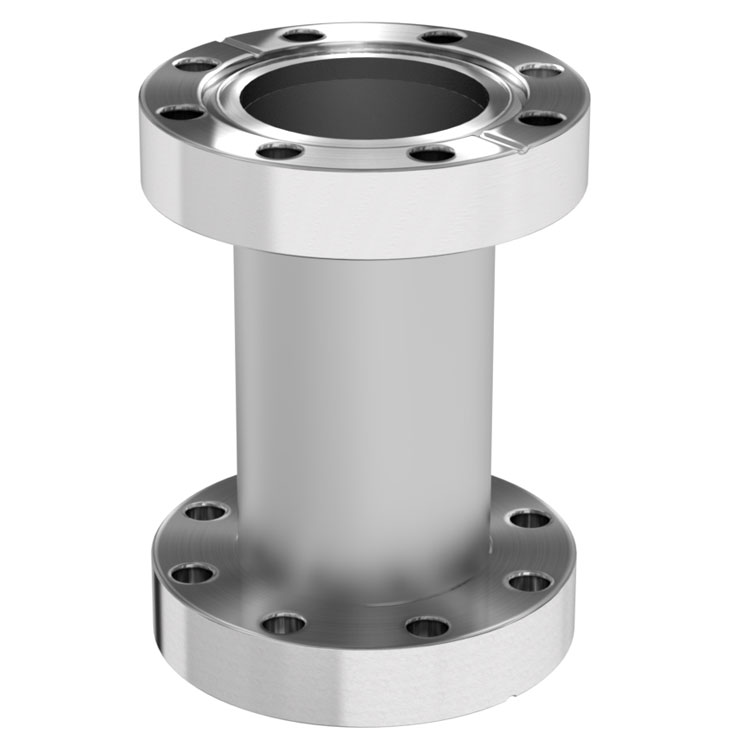

Conflat Flange (CF) Full Nipple, CF 3-3/8 inches Stainless Steel Fittings
Out of Stock
Arrival: 2 on 2025-01-21


These full nipple vacuum fittings have two fixed 3-3/8 inch conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.Conflat Flange (CF) Full Nipple, CF 3-3/8 inches, Stainless Steel

Condition: New



Product Number: P108986



Price: $142.34

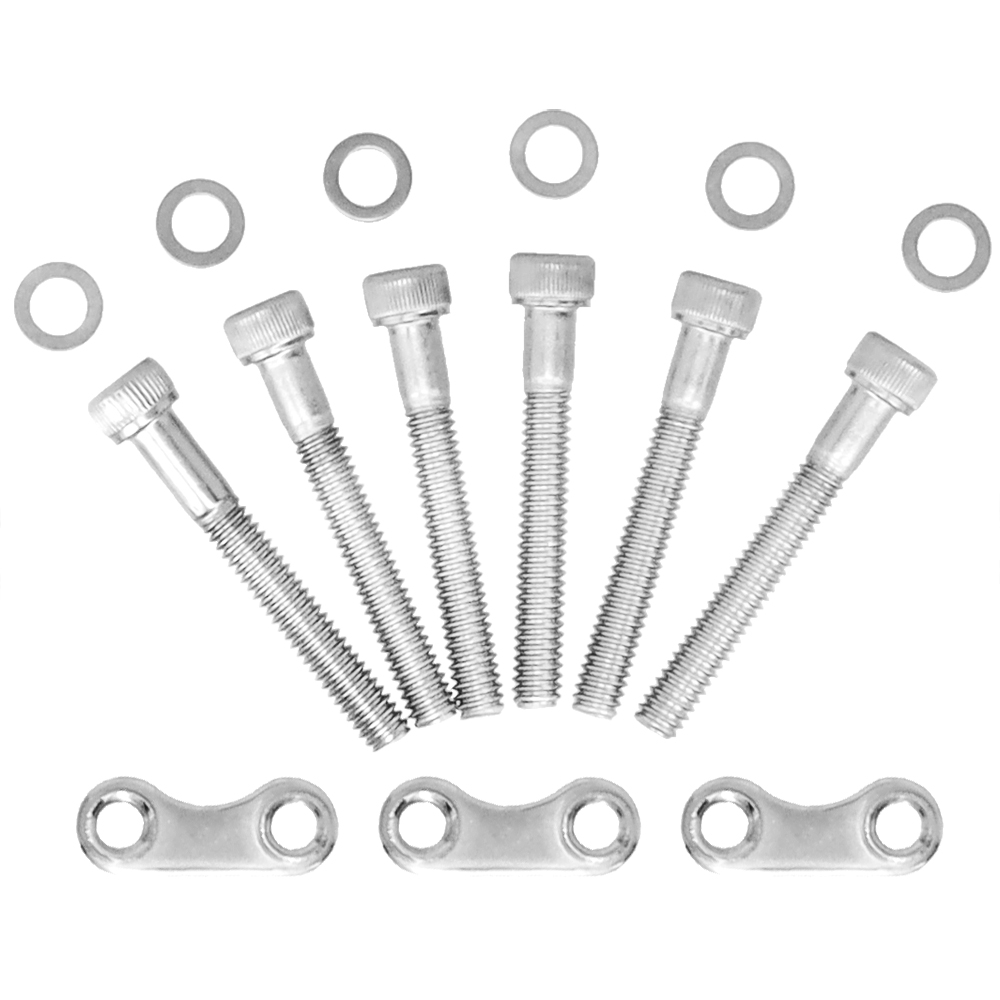

Bolt Kit For Conflat CF 1.33 Inch Flanged CommandValve or Ideal Seal Buttlerfly Valves, Includes 8-32 x 2.00 Inch Long SHCS Bolts, Platenuts, & Washers.
In Stock: 13


This bolt kit is used to connect a Conflat CF 1.33" CommandValve or Ideal Seal buttlerfly valves between two through-hole Conflat flanged fittings. This kit consists of six 8-32 x 2.00" long 8-18 stainless steel socket head cap screws (SHCS) bolts, 3 platenuts, and 6 washers. These SCHS bolts require a 9/64" hex wrench.

Condition: New



Product Number: P108981



Price: $36.85



Bolt Kit For Conflat CF CF 2.125 or CF 2.75 Inch Flanged CommandValve or Ideal Seal Buttlerfly Valves, Includes 1/4-28 x 2.25 Inch Long SHCS Bolts, Platenuts, & Washers
In Stock: 14


This bolt kit is used to connect a Conflat CF 2.125" or CF 2.75" CommandValve inline between two through-hole Conflat vacuum flanged fittings. This kit consists of six 1/4-28 x 2.50" NF, 8-18 stainless steel socket head cap screws (SHCS), 3 platenuts, and 6 washers. These SCHS bolts require a 3/16" hex wrench.

Condition: New



Product Number: P108980



Price: $47.07



Bolt Kit For Conflat CF 3.375 Inch Flanged CommandValve or Ideal Seal Buttlerfly Valves, Includes 5/16-24 x 3.00 Inch Long SHCS Bolts, Platenuts, & Washers.
In Stock: 58


This bolt kit is used to connect a Conflat CF 2.125" or CF 2.75" CommandValve inline between two through-hole Conflat vacuum flanged fittings. This kit consists of eight 5/16-24 x 3.0" NF, 8-18 stainless steel socket head cap screws (SHCS), 4 platenuts, and 8 washers. These SCHS bolts require a 1/4" hex wrench.

Condition: New



Product Number: P108979



Price: $63.60
