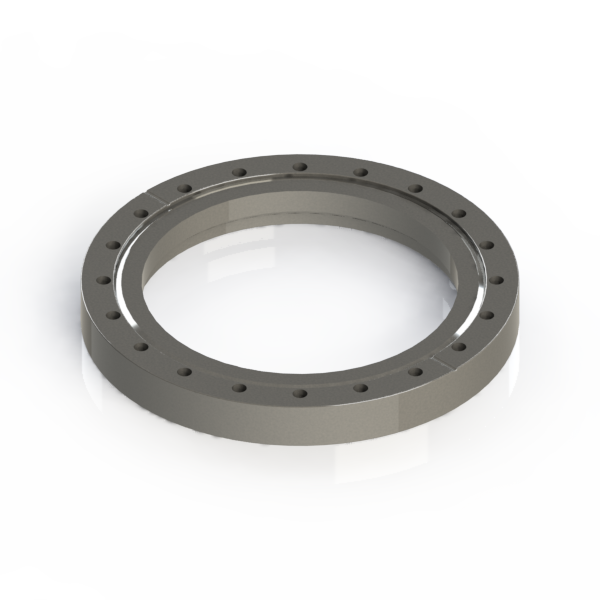

Bored Conflat Flange, 8.00 inch, Bored 6.00 in., Tapped Holes, Rotatable, 8.00 inches CF-F, SS


Bored Conflat Flange, 8.00 inch, Bored 6.00 in., Tapped Holes, Rotatable, 8.00 inches CF-F, Stainless Steel.

These are Bored tapped 20 bolt holes rotatable flanges, 8.00 inch CF, CFF ConFlat (CF). These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH

Conflat Flange (CF) Bored 20 bolt hole tapped flange rotatable, bored 6.00 inch, CF 8.00 inches, Stainless Steel
CF Flange Size: CF 8.00 inch
Common Dimensions:
(A) Outer Diameter = 8.00 in. (202mm)
(B) = 6 in. (153mm)
(C) = 5 7/8 in. (150mm)
(D) = 15/16 in. (24mm)
(E) = 7 1/8 in. (181mm)


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
