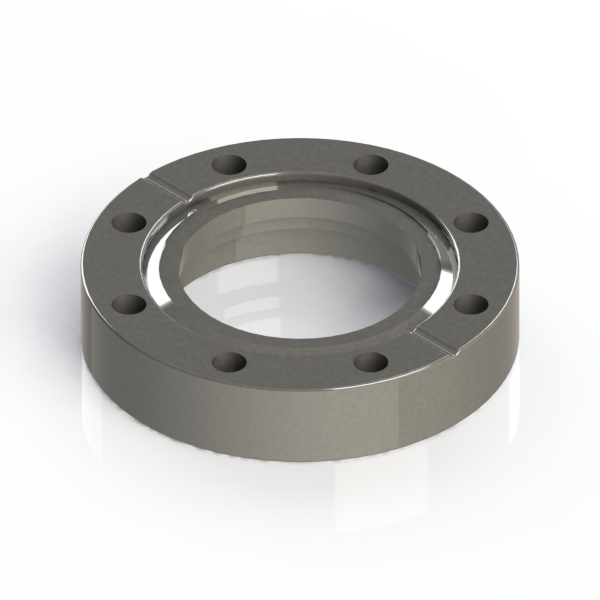

Bored Conflat Flange, 3.375 inch, Bored 2.00 in., Tapped Holes, Rotatable, 3 3/8inches CF-F, Stainless Steel.
These are Bored tapped 8 bolt holes rotatable flanges, 3 3/8 inch CF, CFF ConFlat (CF). These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH
Conflat Flange (CF) Bored 8 bolt hole tapped flange rotatable, bored 2.00 inch, CF 3 3/8 inches, Stainless Steel
CF Flange Size: CF 3.375 inch
Common Dimensions:
(A) Outer Diameter = 3 3/8 in. (85mm)
(B) = 2.00 in. (54mm)
(C) = 1 7/8 in. (49mm)
(D) = 7/8 in. (17mm)
(E) = 2 13/16 in. (72mm)
