Condition:
  New
Part Number:
  P104671
Warranty:
  Against Product Defect

Available Now:
5  

RoHS Compliance Sticker


$24.24


Print Version

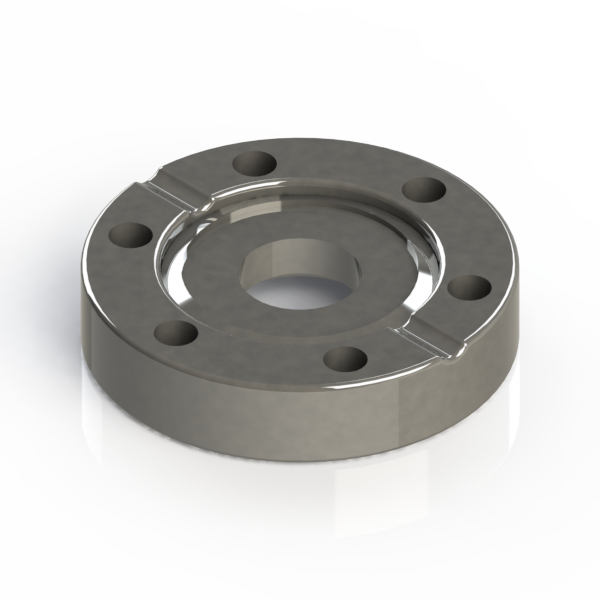

Bored Conflat Flange, 1.33 inch, Bored 0.5 in., Tapped Holes, Rotatable, 1 1/3 inches CF-F, SS


Bored Conflat Flange, 1.33 inch CF, Bored 0.5 in., Tapped Holes, Rotatable, 1 1/3 inches CF-F, Stainless Steel.

These are Bored tapped 6 bolt holes rotatable flanges, 1 1/3 inch CF, CFF ConFlat (CF). These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH

Conflat Flange (CF) Bored 6 bolt hole tapped flange rotatable, bored 0.50 inch, CF 1 1/3 inches, Stainless Steel
CF Flange Size: CF 1.33 inch
Common Dimensions:
(A) Outer Diameter = 1 1/3 in. (34mm)
(B) = NA
(C) = 1/2 in. (13mm)
(D) = 1/4 in. (7mm)
(E) = 1 1/16 in. (27mm)


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
