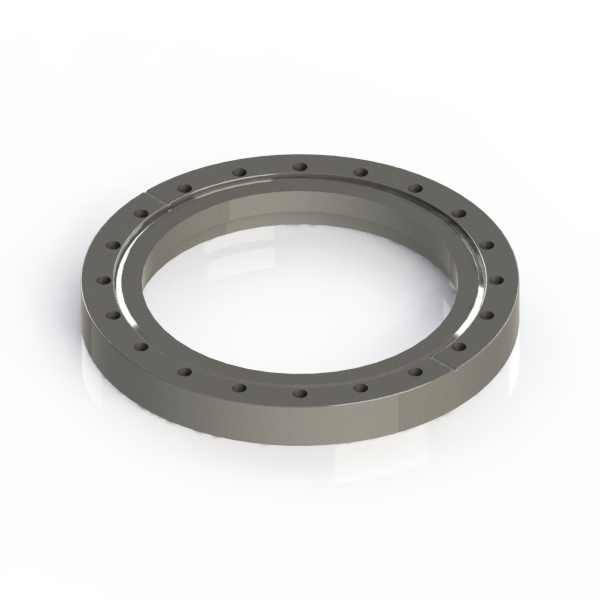

Bored Conflat Flange, CF 8 inch, Bored 6.00 in, 5/16-20 Tapped Holes, Non-Rotatable,
8.00 inch CF-F, Stainless Steel.
These are Bored Conflat Flange, CF 8 inch, Bored 6.00 in, 5/16-20 Tapped Holes, Non-Rotatable, 8.00 inches CF-F, Stainless Steel. These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH.
Bored Conflat Flange, CF 8 inch, Bored 6.00 in, 5/16-20 Tapped Bolt Holes, Non-Rotatable, 8.00 inches CF-F, Stainless Steel
CF Flange Size: CF 8 inch, 8.00 inch
Common Dimensions: Flange Size OD = 8.00"
(A)=8.00" (202mm)
(B)=6.00" (153mm)
(C)=5-7/8" (150mm)
(D)=7/8" (22.35mm)
(E)=7 1/8" (181mm)
