Home > Modular Vacuum Chambers > Plates, Frames, and Parts > Ideal Vacuum Cube Hardware and Accessories > Bolt Kit for Ideal Vacuum Cube Plates with CF 8.0" Conflat Port, Twenty Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

Condition:

New

Part Number:

P1012252

Warranty:

Against Product Defect

Available Now: 222

RoHS Compliance Sticker

$110.42

Print Version

Bolt Kit for Ideal Vacuum Cube Plates with CF 8.0" Conflat Port, Twenty Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

Bolt Kit for Ideal Vacuum Cube Plates with CF 8.0" Conflat Port, Twenty Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

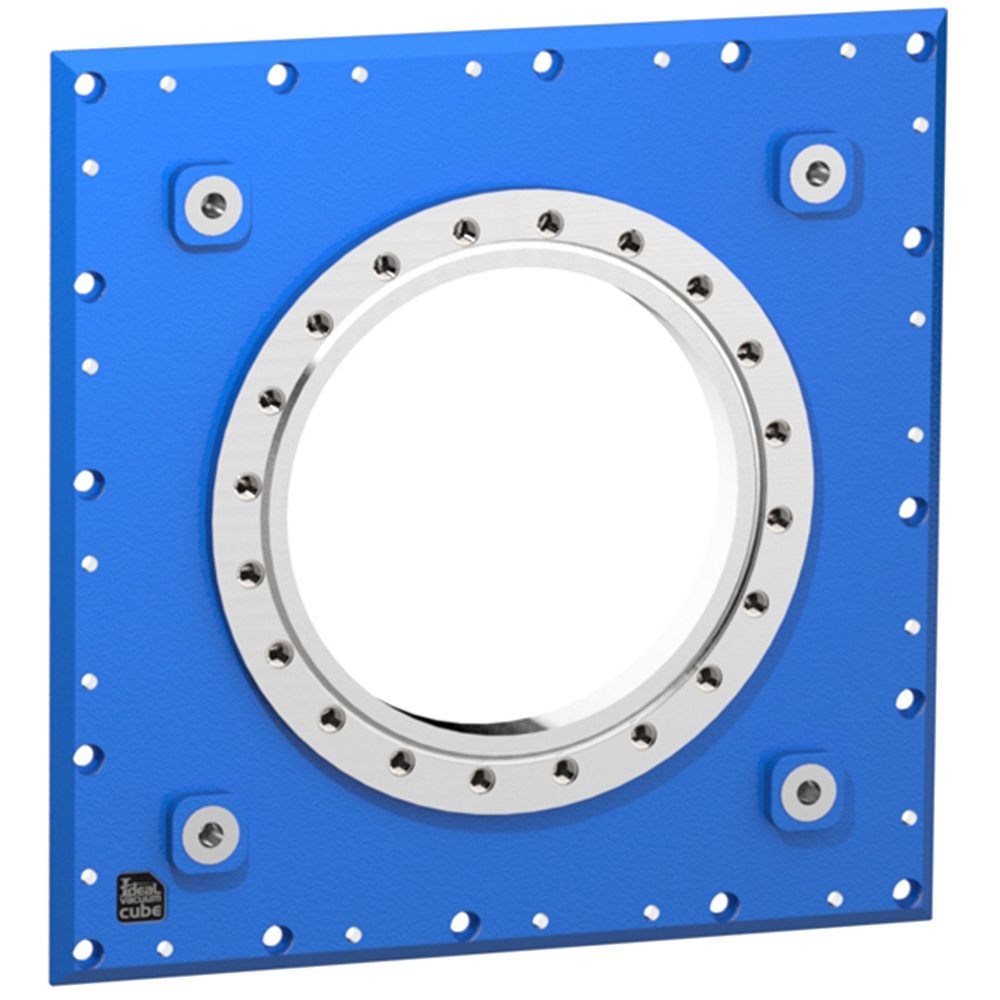

This hardware kit is specifically for Ideal Vacuum Cube plates that have a Conflat 8.0" port with tapped bolt threads. The kit consists of twenty (20) silver-plated, 12-point bolts, 5/16-24 x 1.0", and twenty (20) stainless steel washers. The 1.0" screws are slightly shorter than the bolts typically used to connect two CF flanges together. The silver-plating on the bolts keeps them from galling and makes them easily removed and replaced when changing vacuum plumbing configurations.

This kit consists of:

20 ea. silver-plated, 12 point, 5/16-24 x 1.0" bolts
20 ea. 304 stainless steel washers

Press ESC to Close

Availability Of Kit Components Kit: P1012252 - Bolt Kit for Ideal Vacuum Cube Plates with CF 8.0" Conflat Port, Twenty Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	20	4452
Non-Standard	No Component Description Available On Website	20	4941
