Condition:
  New
Part Number:
  P1013157
Warranty:
  Against Product Defect

Available Now:
8  

RoHS Compliance Sticker


$26.31


Print Version

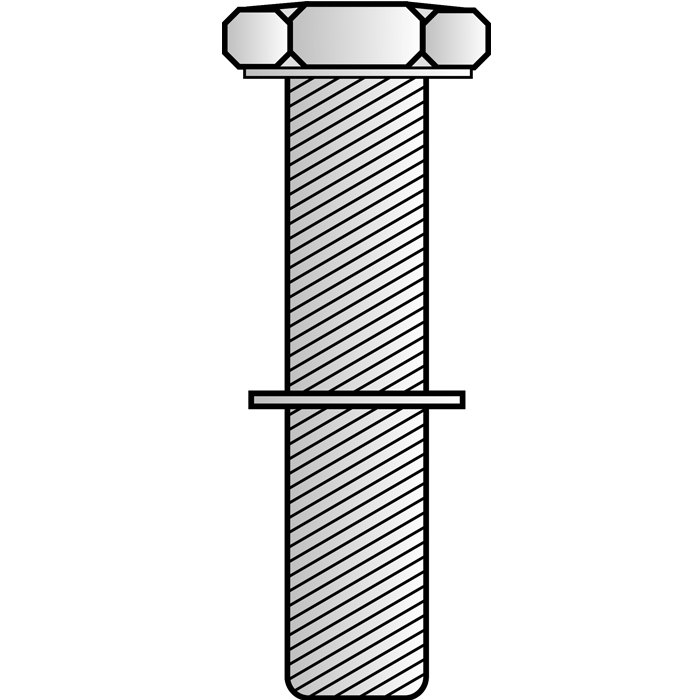

Bolt Kit for ISO-F DN 200 Gate Valve with Tapped Hole Flange, Includes 12 Silver Plated M10 x 1.50 x 25 mm Long Bolts and 12 Stainless Steel Washers.


Bolt Kit for ISO-F DN 200 Tapped Holes Gate Valve Flange, Threaded Holes, Includes Twelve M10 x 1.50 x 25 mm Long Silver Plated Bolts and Twelve Washers, 1.50 mm Pitch.

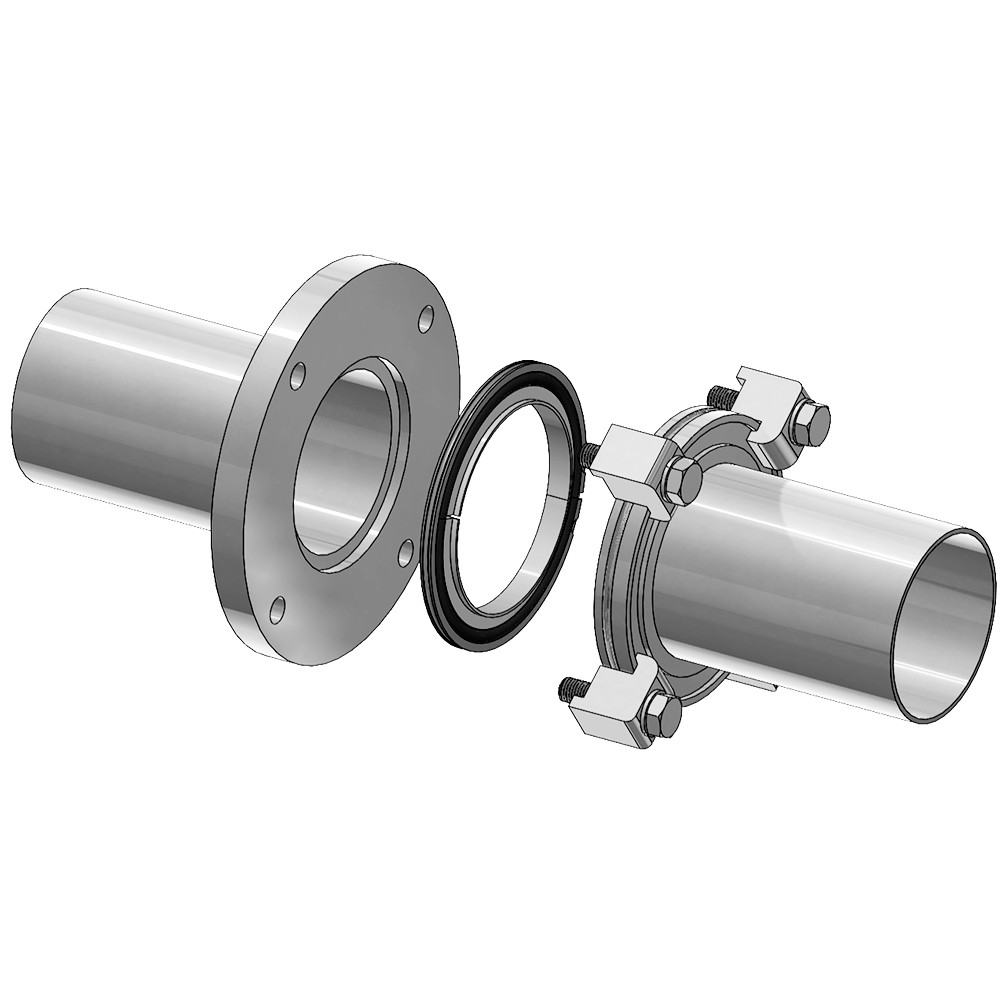

These bolts are for tapped threaded hole flanges and follow ISO-LF standards for flange sizes of NW-200. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.


Bolts, for Tapped Threaded Hole NW-200, Vacuum Flanges, Silver-Plated, Quantity of 12
ISO-LF Flange Size: NW-200
Quantity: 12 bolts include washers
Common Dimensions: Bolt Size M10 x 30 x 1.50mm Pitch


Press ESC to Close




Availability Of Kit Components

Kit: P1013157 - Bolt Kit for ISO-F DN 200 Gate Valve with Tapped Hole Flange, Includes 12 Silver Plated M10 x 1.50 x 25 mm Long Bolts and 12 Stainless Steel Washers.
Component
Desc.
Req'd
Avail
Non-Standard
No Component Description Available On Website
12
96
Non-Standard
No Component Description Available On Website
1
452
PDF Logo RoHS Compliance Download
