Baldor Super-E TEFC Motor, Inverter Duty, 230/460V,25Hp, 3520 RPM, 3 Phase, 256T Frame. PN: EM4118T.


Baldor Super-E TEFC Motor, Inverter Duty, 230/460V,25Hp, 3 Phase, 3520 RPM, 256T Frame.
Baldor Part Number: EM4118T.

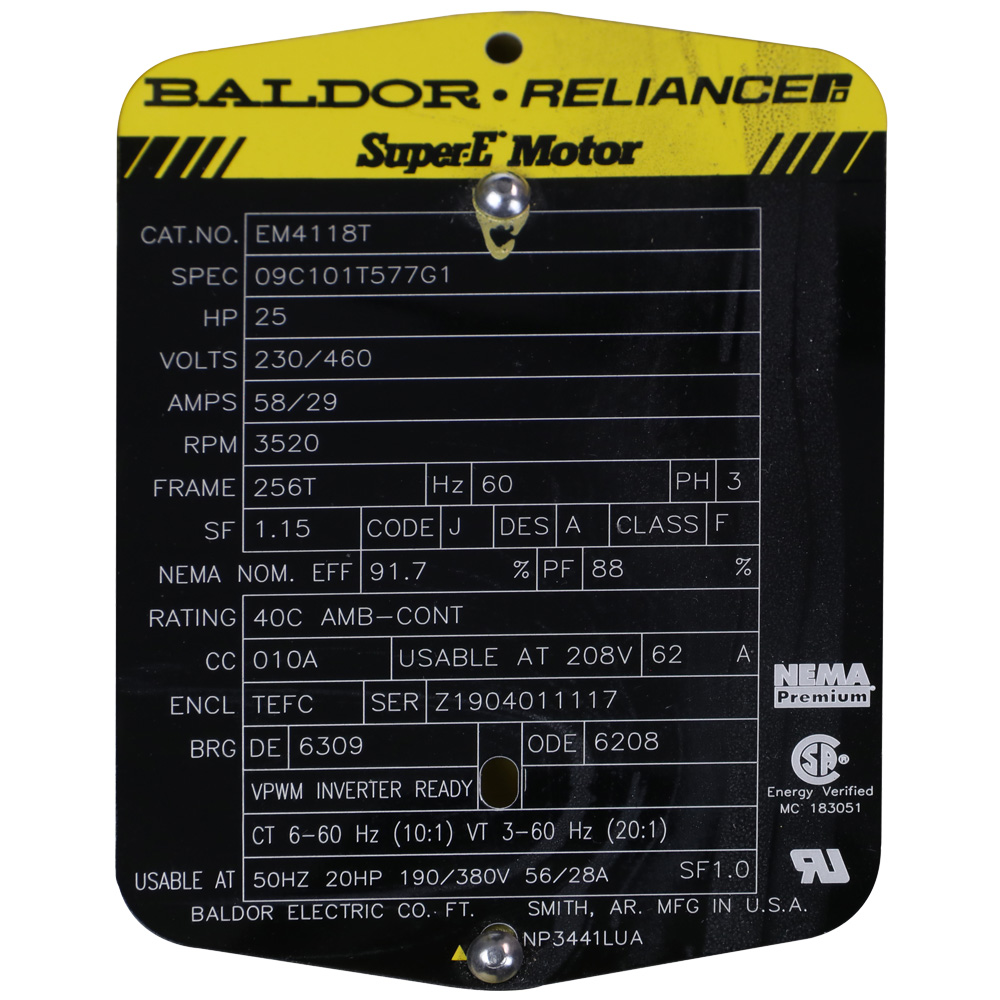

This is a Baldor Super Efficient (Super-E) 25Hp, 3 Phase Motor. It is rated for inverter duty. Runs on 230/440, 58/29A @ 60Hz, 3520 rpm. Derate to 20Hp @ 190/380V @50Hz.

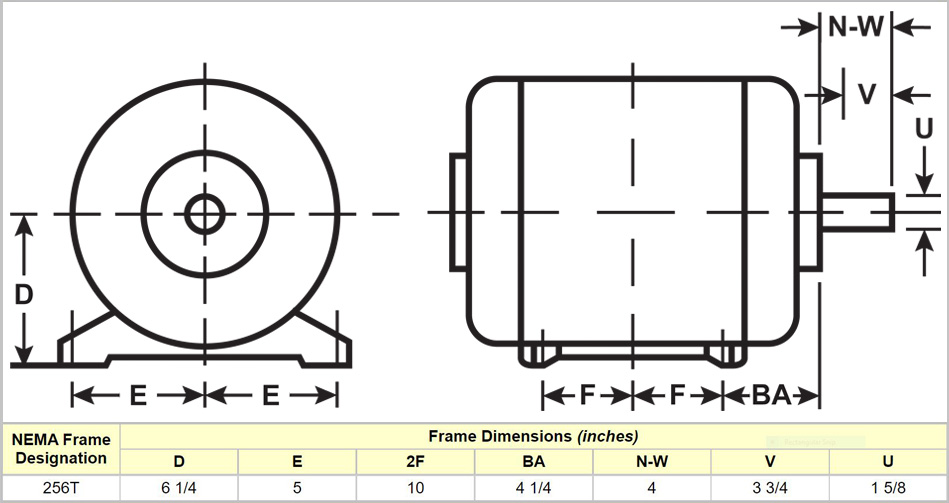

Please see physical dimensions below.



Press ESC to Close

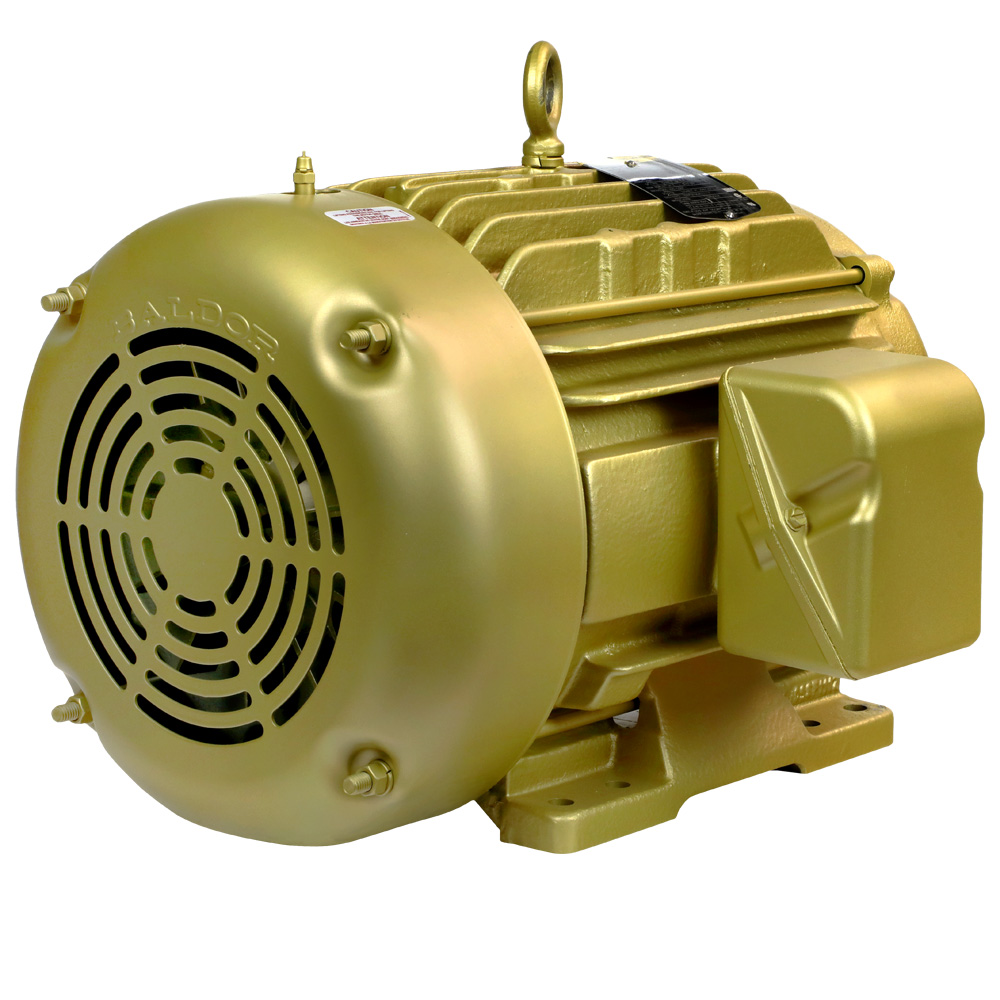

Baldor EM4118T 25Hp 3520rpm motor
