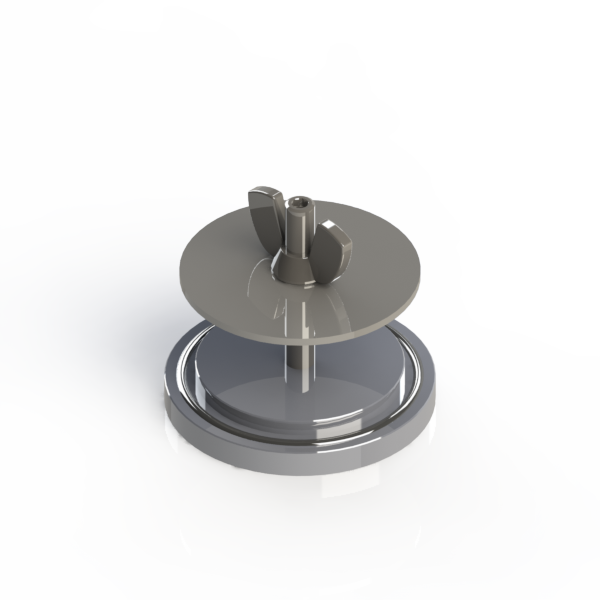

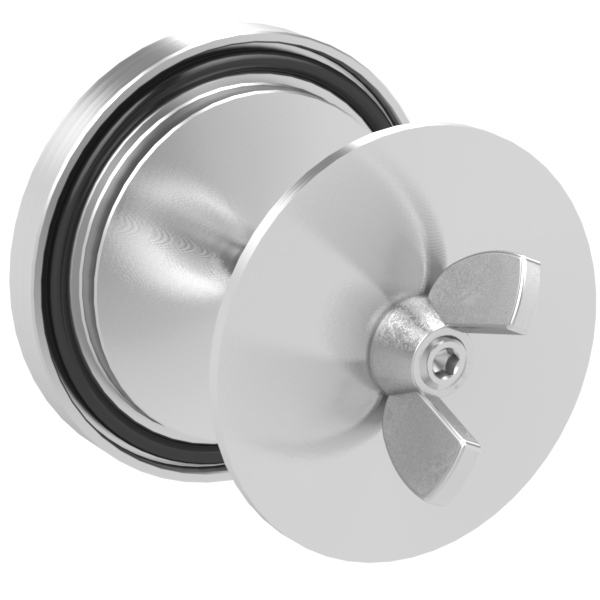

Aluminum Hole Plug to Fit 1-3/4 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring

Aluminum Hole Plug to Fit 1-3/4 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring.

These 6061-T6 aluminum feedthrough hole plugs are designed to seal 1.75 inch diameter bulkhead ports on flat plates or chambers with walls up to 1.0" thick. These hole plugs have Viton O-ring seals and are rated for high vacuum in the 10^-8 Torr range.

Dimensions:

A = 1.74"
B = 2.5"
C= .07"
D = 0.375"
E = 1.0" Max.

Press ESC to Close

P108741.sldprt

P108741.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
