Condition:
  New
Part Number:
  P103601
Warranty:
  Against Product Defect

Available Now:  42  



$128.38


Print Version

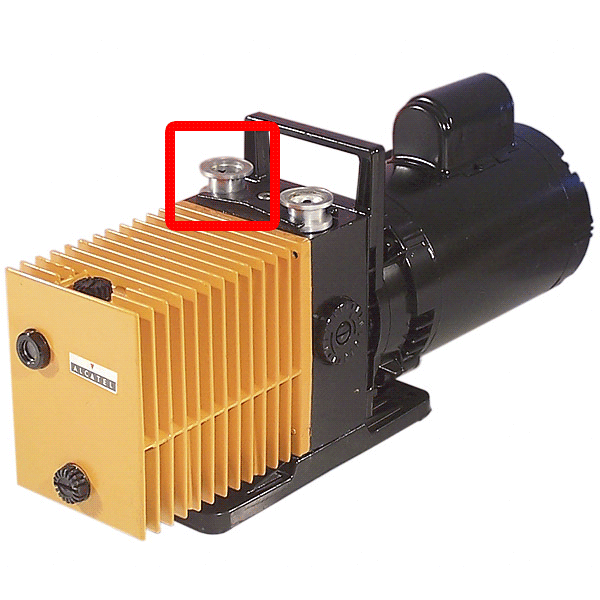

Alcatel Inlet Port, NW25 to 2004 2008 2012 2020 A & C Vacuum Pumps, Aluminum, PN 052594


Alcatel Inlet Port, NW25 to 2004 2008 2012 2020 A & C Vacuum Pumps, Aluminum, PN 052594

This is an Inlet port are designed to fit Alcatel, Precison Scientific and Varian rotary vane vacuum pumps. They are made of Aluminum.

Fit Vacuum Pumps Models:

  • Alcatel: 2004, 2008, 20012, 2020, A & C
  • Precision Scientific DD-90, DD-195, DD-310, DD-475, A & C
  • Varian CD-90, SD-90, CD-200, SD-200, CD-300, SD-300, CD-450, SD-450
  • Dimensions: Height 1.5", Weight 3 oz.
  • Material: Aluminum
  • Edwards PN: 052594



Press ESC to Close


Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
