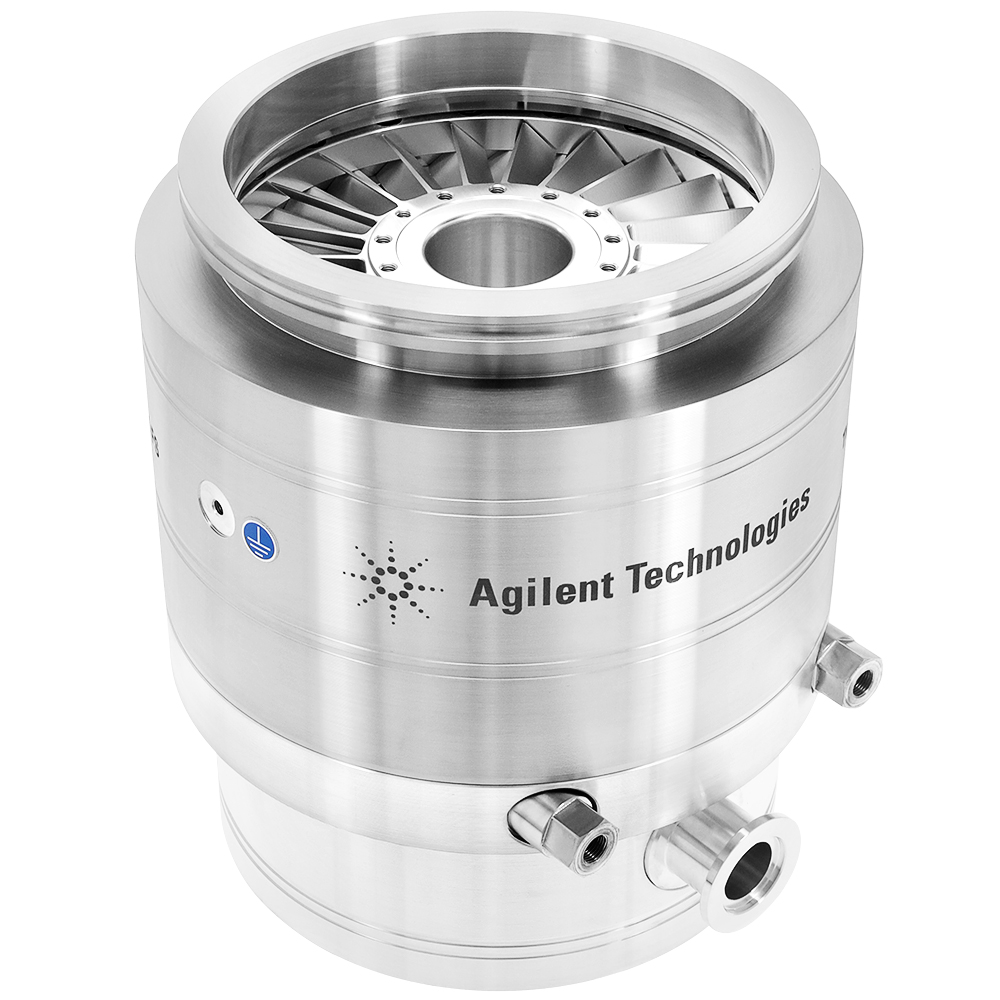

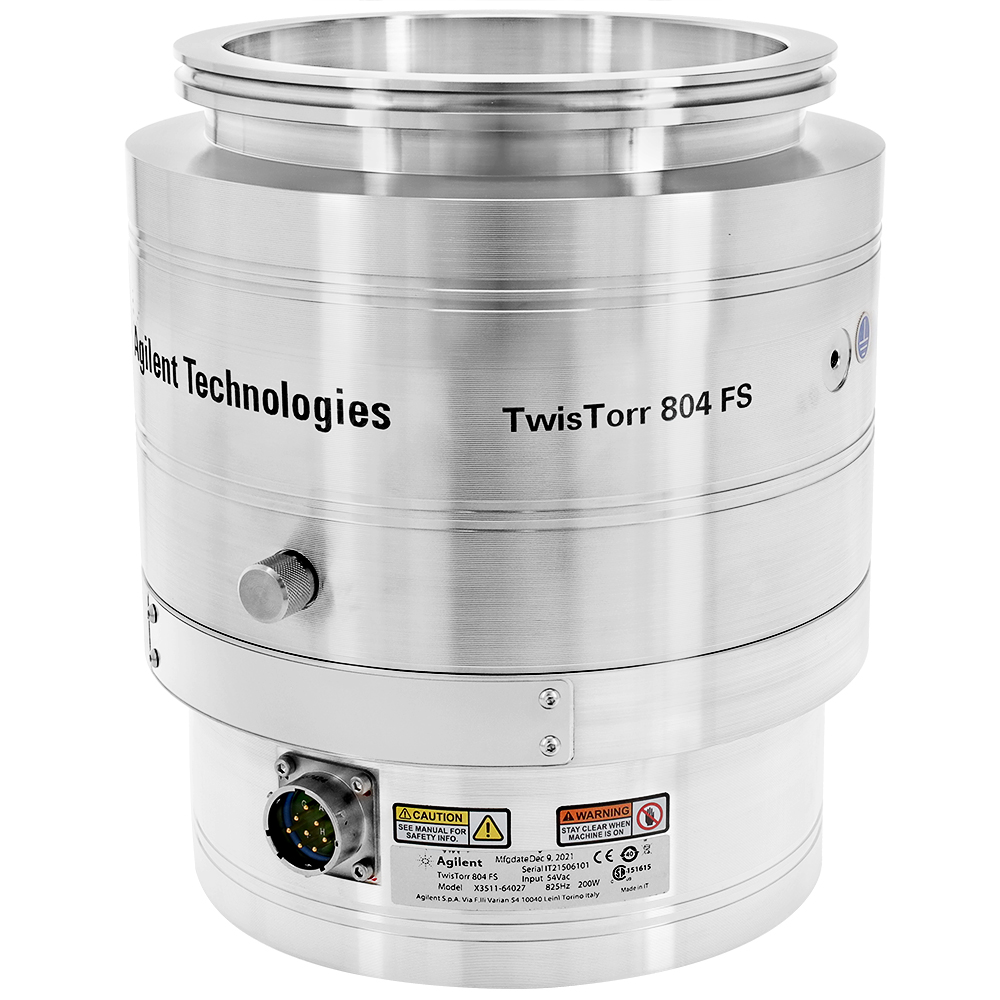

Agilent Varian TwisTorr 804 FS Turbomolecular Vacuum Pump, ISO-200K Inlet Flange, 720 L/S Pumping Speed. PN: X3511-64023

These Agilent Varian TwisTorr 804 FS turbomolecular vacuum pumps are air cooled, with ISO-200K inlet flange, and have the Agilent Floating Suspension with patented TwisTorr drag stages. These Agilent Varian TwisTorr 804 FS turbomolecular high-vacuum pumps have new and improved performance, including a newly designed labyrinth Twistorr drag stage technology and the Agilent Floating Suspension (AFS) along with optimized thermal design mapping. TwisTorr drag stages create high compression ratios for light gases such as Hydrogen and Helium to deliver high throughput and high tolerance of foreline pressure, thereby permitting the use of smaller and more economical backing pumps. These Agilent Varian 804 FS turbomolecular high-vacuum pumps have an ISO-200K inlet flange, an ultimate pressure of 1x10-8 Torr (which is limited by outgassing from the rubber O-ring seal in the intake ISO centering ring), and have an Agilent Varian part number X3511-64023. The Conflat version, with all metal-sealed conflat intake gasket, are true ultra-high vacuum pumps having an ultimate pressure as low as 1x10-10 Torr when used correctly. The required fan air cooling kit is sold separately.

This technology results in a compact rotor design that is energy-efficient and maintains a low operating temperature. The Agilent Floating Suspension System (AFS) reduces noise and vibration, and ensures optimal bearing operating conditions to extend operating life, minimize system downtime, and assure stable pumping performance over long periods of time. The unique ceramic ball bearings with permanent lubrication eliminate oil and maintenance, and permit operation of the pump in any orientation. These TwisTorr 804 FS turbo pumps require a cooling kit, either fan forced-air or water cooling, along with an outboard remote rack-mount or onboard pump-side-mounted controller, all are sold separately by Ideal Vacuum.

Agilent turbo pumps are designed for optimum performance in real world applications and include integration of pumping systems and multi-flow pumps. Compact sized pumps meet the needs of industries with stringent space requirements. These new Agilent TwisTorr 804 FS turbo pumps require minimal to no maintenance and provide protection from misuse. These pumps go through a variety of quality and reliability tests to include: Long life, Shock, Vibration, Packaging, Thermal, and Noise.

The Agilent Varian TwistTorr 804 FS turbo pump with ISO-200K flange has a pumping speed of 720 l/s of nitrogen, KF-25 (and spare KF-40 interchangable) foreline flange and ambient operating temperature from 5 °C to +35 °C. These 804 FS pumps have a start up time of 3 minutes, Rotational speed up to 49,500 rpm. Recommend foreline pumps are dry IDP-10, IDP-15 or wet DS-302. The cooling requirements are a minimum of forced air when conditions are 5 to 35 °C ambient air temperature or water cooling with water temperature between 15 to 25 °C at a 100 l/h and water pressure max of 75 psi.

The new Agilent Twistorr 804 FS offers a blend of performance and features that is suited for a wide range of applications. It is a very versatile turbo and can be used in a variety of fields:

Typical Turbo Pump Applications include:

• Mass Spectrometry
• Gas Chromatography Mass Spectrometry (GC/MS)
• Liquid Chromatography Mass Spectrometry (LC/MS)
• Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
• Time-of-Flight Mass Spectrometry (TOF)

Vacuum in Research and Development:

• High Energy Physics
• Fusion Technology
• General UHV Research
• Synchrotron Light Sources Particle Accelerators

Nanotechnology Instruments:

• Electron Microscopy
• Scanning Electron Microscopy (SEM)
• Transmission Electron Microscopy (TEM)
• Focused Ion-beam Systems (FIB)
• Surface Analysis
• Semiconductor Manufacturing

Industrial Vacuum Processing:

• Thin Film Deposition
• Glass coating equipment (architectural and automotive glass, flat panel displays)
• Thin film solar cells production (photo-voltaic)
• Optical data media (CD, DVD, Magneto Optical Discs)
• Magnetic storage media
• Surface treatments
• Optical coating (ophthalmic, precision opto-electronics)
• Roll/Web coating on films or foils

Device Processing:

• TV & Monitor picture tube manufacture
• Evacuation of lamps (motorway lighting, beamers)
• X-Ray tubes & electron devices

General Processes:

• Vacuum Furnaces
• Metallurgy
