Agilent Varian Turbo V 1001 Turbo Pump Package Deal with Conflat 10.0 Inch Inlet and IDP-15 Dry Scroll Backing Pump, Turbo-V 1001 Rack Controller, and Air-Cooling Kit.
Agilent Varian Turbo V 1001 Turbo Pump Package Deal with Conflat 10.0 Inch Inlet and IDP-15 Dry Scroll Backing Pump, Turbo-V 1001 Rack Controller, and Air-Cooling Kit.

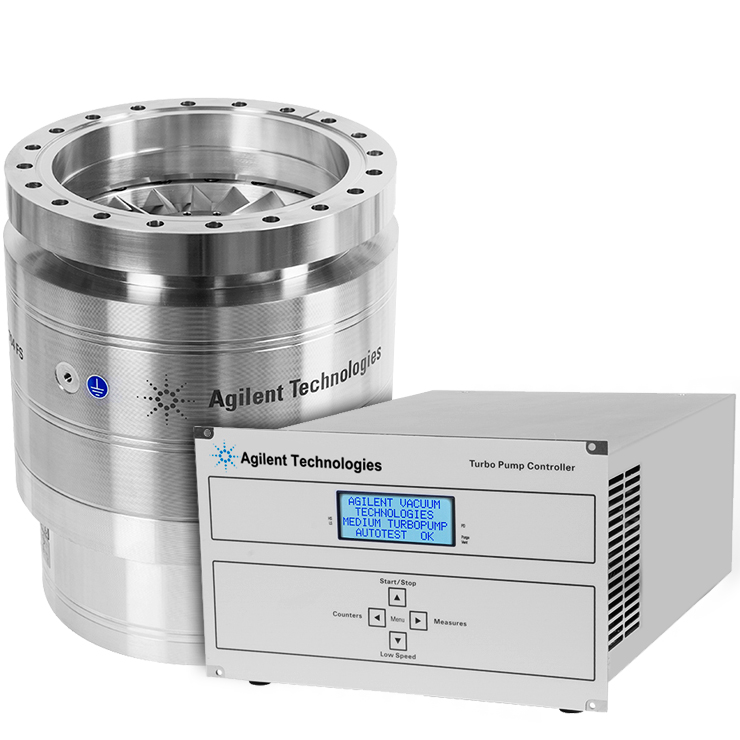

This Agilent Varian Turbo V 1001 turbo vacuum pump package deal with dry scroll roughing pump is ideal for laboratory applications. The package deal includes an Agilent Varian Turbo V 1001 turbo pump with Conflat 10.0" inlet flange, with a pumping speed of 950 l/s, KF-40 (NW40) foreline flange, and an inlet screen. This Turbo V 1001 pump has a start-up time of less than 4 minutes, has a maximum rotational speed of 38,000 rpm, and has Agilent part number 9698932. This package deal includes an IPD-15 dry scroll backing pump with inlet isolation valve and a 120V mains power cable (NEMA 5-15P plug). The IDP-15 has a peak pumping speed of 9.4 cfm (15.4 m3/h) at 60 Hz, produces an ultimate pressure of 10 mTorr, and is extremely quiet (< 50 dBA). This deal also includes the Turbo-V 1001 rack controller with 120V mains power cable (NEMA 5-15P plug). The controller has an attached 3 m long cable which connects to and powers the pump. The controller has RS232/485 serial communication, and dedicated outputs for powering an air-cooling fan, and a vent valve. The controller can be rack or benchtop mounted. This package deal also includes a radially-mounted, forced air-cooling kit with 3 m long extension cable for connection to the controller. A water-cooled version is available upon request. This turbo pump package deal includes the roughing pump, but does not include roughing lines, vacuum chamber, pressure measurement gauges, or vent valves, all of which are available and sold separately by Ideal Vacuum. This package deal is stored in our inventory as a kit, made up of many separate parts, and each is listed in our Availability of Kit Components section below.
Turbo-V 1001 Navigator turbomolecular pumps have maximum performance at minimum cost and size. The Turbo-V 1001 is a compound pump which includes Agilent Varian proprietary MacroTorr drag stage technology to achieve high-compression ratios for light gases, maximize the throughput of the pump, and extend the foreline tolerance up to 18 mbar. V series pumps can be run in any position and in any gas load working condition. Agilent Varian V series maintenance-free turbo pumps employ dry ceramic ball bearing technology using an ultra-low vapor pressure solid lubricant, which enables these pumps to provide a long service life, with a MTTF of 120,000 hours, and a high degree of cleanliness under most operating conditions. Agilent A-PLUS software allows you to connect your laptop or PC directly to the pump control unit and start to use it. You can start or stop the pump, as well as check its temperature and gas load conditions. You can also monitor pump parameters over time, as well as do straightforward diagnostics directly on the vacuum system in the Windows environment.
Applications for this package deal include:
Mass Spectrometry
Gas Chromatography Mass Spectrometry (GC/MS)
Liquid Chromatography Mass Spectrometry (LC/MS)
Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
Time-of-Flight Mass Spectrometry (TOF)
Vacuum in Research and Development:
High Energy Physics
Fusion Technology
General UHV Research
Synchrotron Light Sources Particle Accelerators
Nanotechnology Instruments:
Electron Microscopy
Scanning Electron Microscopy (SEM)
Transmission Electron Microscopy (TEM)
Focused Ion-beam Systems (FIB)
Surface Analysis
Semiconductor Manufacturing
Industrial Vacuum Processing:
Thin Film Deposition:
Glass coating equipment (architectural and automotive glass, flat panel displays)
Thin film solar cells production (photo-voltaic)
Optical data media (CD, DVD, Magneto Optical Discs)
