Condition:
  New
Part Number:
  P106019
Warranty:
  1-Year Limited Warranty

Available Now:
2  



$891.25


Print Version

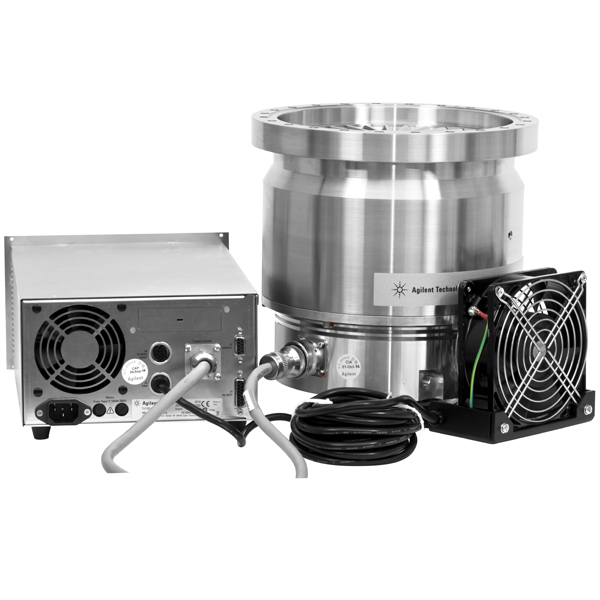

Agilent Varian Turbo-V 1001 Turbo Pump Air Cooling Kit for V1001 Rack-Mount Controller, 9699315


Agilent Varian Turbo-V 1001 Turbo Pump Air Cooling Kit for V1000 HT Rack-Mount Controller 120VAC, PN 9699315
ONLY Connects to Controllers V 1000HT Rack Controller 110VAC PN 9699554, NOT the V 1001 Rack Controller.

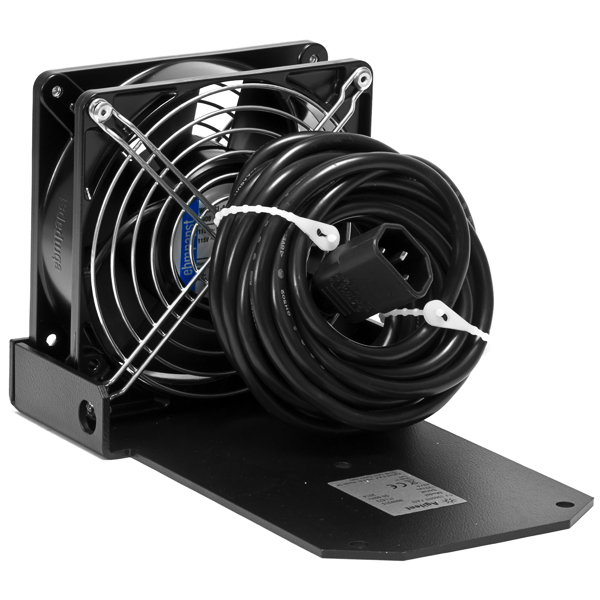

These Agilent Varian air cooling fan kits are designed to work with the V 1000HT rack-mount controllers. These kits include the air cooling fan, power cable to connect the cooling fan to 120 VAC supply on the auxiliary power J6 connectors (1 Amp max output) on back side of V1000HT rack-mount controller, and bottom of pump mounting style bracketing.

This is very important when ordering! There are two different air cooling fan kits for the Agilent Varian Turbo-V 1001 turbo molecular pumps: This unit is designed to work with the Rack-Mount V1000 HT controller which is being sold here where the cooling fan operates on 120 VAC. The other is designed to work with the bottom or side mounted Navigator V1001 controller where the cooling fan operates on 24 VDC having Agilent Varian part number 9699297. These are different products and care must be taken when order a system from individual components.




Press ESC to Close


PDF Logo Agilent Varian Turbo-V 1001 Turbo Pump Instruction Manual.pdf

PDF Logo Agilent Varian Turbo-V 1001 Rack Controller Instruction Manual.pdf

PDF Logo Agilent Varian Turbo-V Pumps Brochure.pdf
