This is an Agilent Varian PVG-500 series of Pirani gauges providing the ultimate combination of state-of-art technology and ruggedness within a compact design. Measurement Range is 3.75x10-4 Torr with no setpoints. The PVG-500 series utilizes the most advanced digital Pirani technology combined with a stainless steel sensor design to meet the various needs of the market today. In a compact, rugged aluminum housing that mounts in any orientation with a logarithmic signal output. Stainless steel sensor cell with metal sealed feedthrough. Easy push button ATM and High Vacuum (HV) adjustment. Can be used with the XGS 600, and Active Gauge Controllers. Other models with setpoints and corrosive applications available.

This is an Agilent Varian PVG-500 series of Pirani gauges providing the ultimate combination of state-of-art technology and ruggedness within a compact design. Measurement Range is 3.75x10-4 Torr with set points. The PVG-500 series utilizes the most advanced digital Pirani technology combined with a stainless steel sensor design to meet the various needs of the market today. In a compact, rugged aluminum housing that mounts in any orientation with a logarithmic signal output. Stainless steel sensor cell with metal sealed feedthrough. Easy push button ATM and High Vacuum (HV) adjustment. Can be used with the XGS 600, and Active Gauge Controllers. Other models with setpoints and corrosive applications available.

This is an Agilent Varian PVG-502S series of Pirani gauges providing the ultimate combination of state-of-art technology and ruggedness within a compact design, for corrosive applications with a nickle filament. Measurement Range is 3.75x10-4 Torr with setpoints. The PVG-502 series utilizes the most advanced digital Pirani technology combined with a stainless steel sensor design to meet the various needs of the market today. In a compact, rugged aluminum housing that mounts in any orientation with a logarithmic signal output. Stainless steel sensor cell with metal sealed feedthrough. Easy push button ATM and High Vacuum (HV) adjustment. Can be used with the XGS 600, and Active Gauge Controllers AGC-100 or AGD-100. The PVG-502S has setpoints and is for corrosive applications.

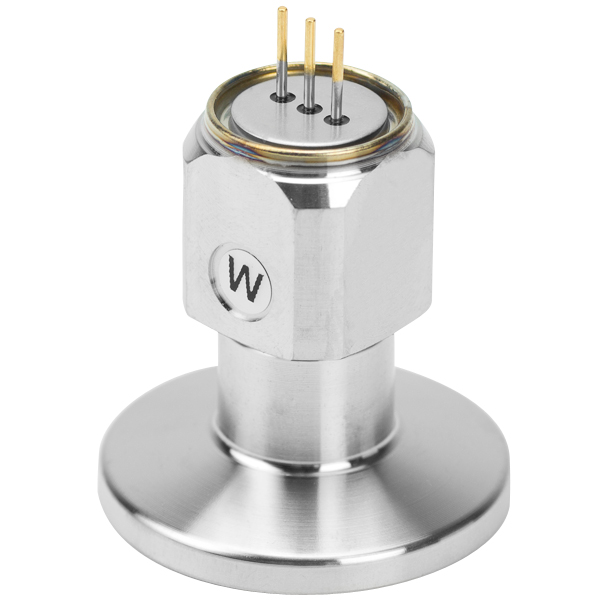

This is an Agilent Varian Replacement Tungsten Sensor for the Active Pirani Gauge PVG-500 with a KF 16 Flange. The Pirani Standard Gauges PVG-500 and PVG-502 have been designed for vacuum measurement of gases in the pressure range of 5×10-4 … 1000 mbar. They must not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within the explosion range. They can be operated in connection with any VARIAN controller or with another controller.

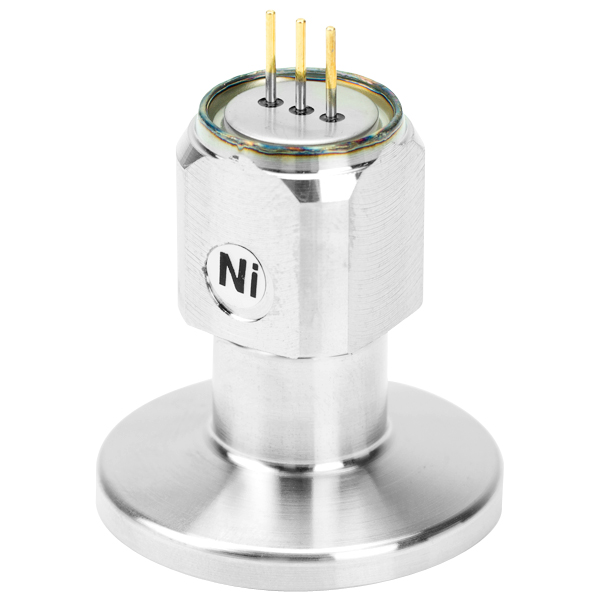

This is an Agilent Varian Replacement Nickel Sensor for the Active Pirani Gauge PVG-502 with a KF 16 Flange. The Pirani Standard Gauges PVG-500 and PVG-502 have been designed for vacuum measurement of gases in the pressure range of 5×10-4 … 1000 mbar. They must not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within the explosion range. They can be operated in connection with any VARIAN controller or with another controller.
