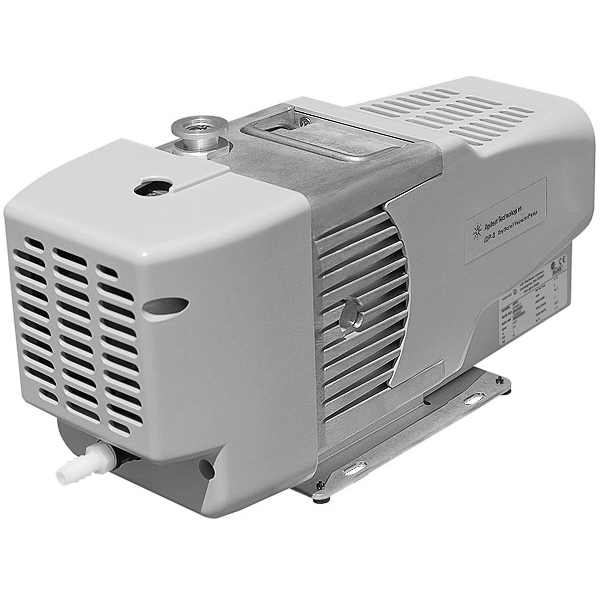

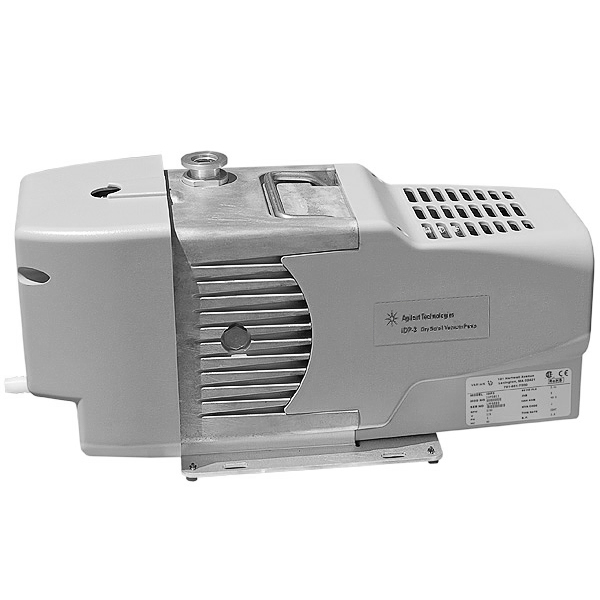

Agilent Varian IDP-3 Dry Oil-Free Scroll Vacuum Pump (Product Number IDP3A01), 220 VAC 50/60 Hz
The Agilent Varian IDP-3 dry scroll vacuum pumps is a compact, high
performance dry pump that provides
affordable oil-free vacuum and easy
system integration, and is suitable
for a wide variety of applications.
The Varian IDP-3 employs an innovative
hermetic design in which the motor
and bearings are outside the vacuum
space, allowing full isolation of all
pumped gases. Delivering a robust
pumping speed of 60 l/m (2.1 CFM) and a very
low base pressure of less than 2.5x10-1 Torr.
The Varian IDP-3 provides all the
advantages of Varians patented scroll
pump technology in a compact,
lightweight, cost-effective package. These new Varian IDP-3 dry oil-free scroll vacuum pumps (Product Number IDP3A01) operate on 1 Ph, 220 VAC, 60 Hz. An Instruction Manual and Brochure PDF on the IDP3 Scroll Pumps can be downloaded, by scrolling down to (AVAILABLE DOWNLOADS)
APPLICATIONS INCLUDE:
Analytical Instrumentation
GC/MS
Residual gas analyzers
Load locks for mass spectrometers
Electron microscopes
Surface area analyzers
EM Sample prep coaters
Semiconductor Fabrication
Gas panels
Gas delivery systems
Double wall containment vessels
High Energy Physics
Accelerators
Beam lines
Synchrotrons
Industrial processing
Laser evacuation
Cryogenic dewars
Glove boxes
Gas recovery and recirculation
Cryopump roughing
Tube processing
Vacuum chucks.
General Research & Development
Experimental chambers
Sample prep systems
Surface analysis systems
Backing turbo pump on beam lines.
