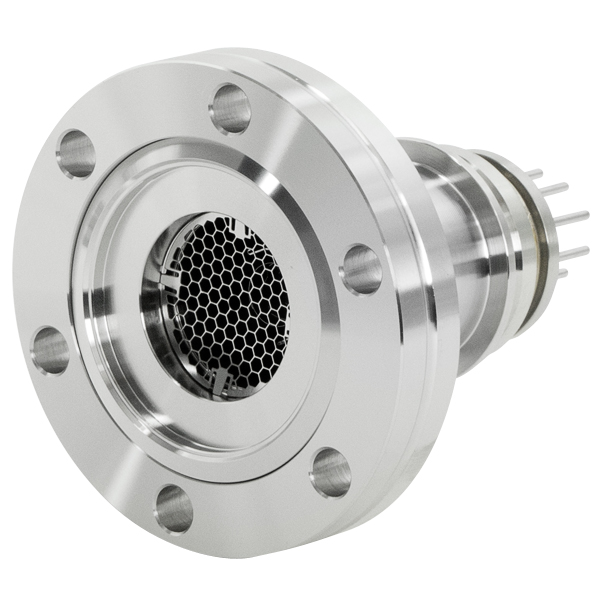

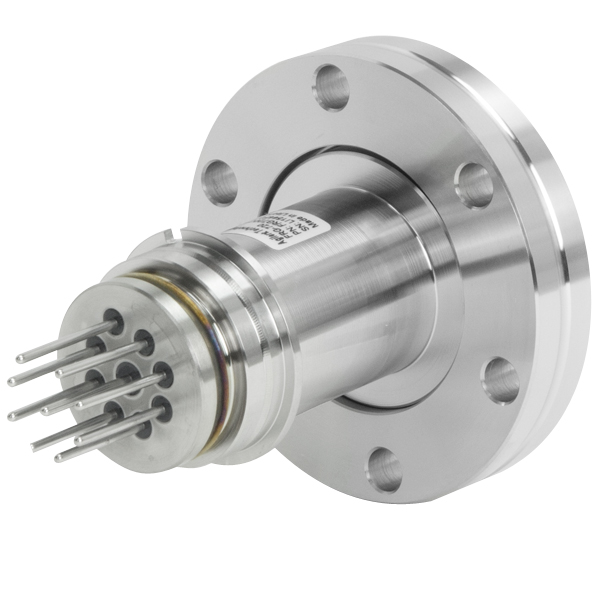

Agilent Varian FRG-720 CF35 Bayard Alpert, Pirani, Single Filament Replacement Sensor FRG720CF35RS


Agilent Varian FRG-720 Pirani and Bayard Alpert SINGLE Filament Replacement Sensor. Hot Cathode Ion, 760 to 3.8 X 10-10 Torr,
CF35 CF 2.75 in. Flange.
Agilent Varian PN FRG720CF35RS.

This Agilent Varian Single Filament Replacement Sensor is for the FRG720 Bayard Alpert and Pirani Combination Gauge with a CF35 CF 2.75 in. Flange. This filament sensor is replaceable by the user. The gauge can measure pressure from 3.8 X 10-10 Torr to atmosphere. Over the whole measuring range, the gauge has a continuous characteristic curve and its measuring signal is output as logarithm of the pressure. The gauge functions with a Bayard-Alpert hot cathode ionization measurement system (for < 2.0×10-2 Torr) and a Pirani measurement system (for >5.5×10-3 Torr). In the overlapping pressure range of 2.0×10-2 to 5.5×10-3 Torr, a mixed signal of the two measurement systems is output. The hot cathode is switched on by the Pirani measurement system only below the switching threshold of 2.4×10-2 Torr (to prevent filament burnout). It is switched off when the pressure exceeds 3.2×10-2 Torr.

This is the replaceable single filament sensor with the CF35 CF 2.75 in. flange. This replacement sensor is for the FRG720 combination gauges only. Signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number FRG720CF35RS. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.

Compatible with FRG720 Single Filament Combination Gauge Part Numbers:
  • FRG720CF35
  • FRG720CF35D
  • FRG720CF35SP
