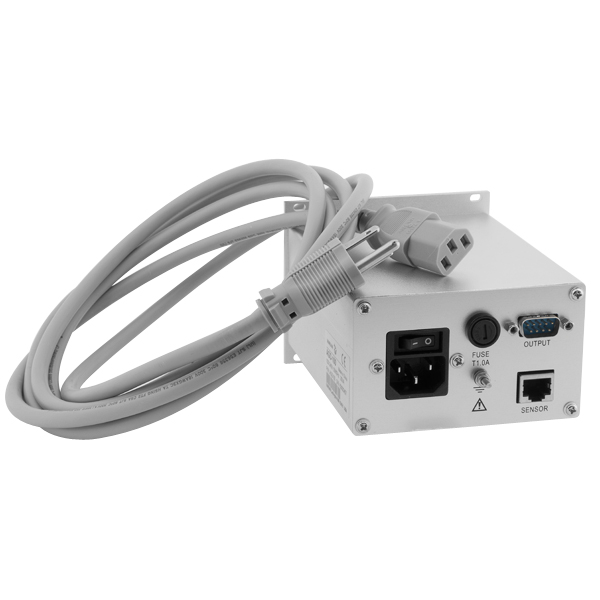

Agilent Varian AGD-100 Active Vacuum Pressure Gauge Digital Control Unit, Single Channel, One Vacuum Sensor
Compatible with FRG 700, FRG702, PCG750, PCG752, PVG500, PVG502, PVG550, and PVG552 Gauges
Agilent Varian Part Number AGD100
The Agilent Varian AGD-100 low cost option active vacuum pressure gauge digital display unit is used together with Agilent Varian vacuum pressure gauge sensors for a total pressure measurement system. This single channel display unit will measure Agilent Varian vacuum gauges (RG 700, FRG702, PCG750, PCG752, PVG500, PVG502, PVG550, and PVG552 gauge sensors) and has adjustable set point control. The AGD-100 is suited for incorporation into a 19" rack or a control panel or for use as desk-top unit.

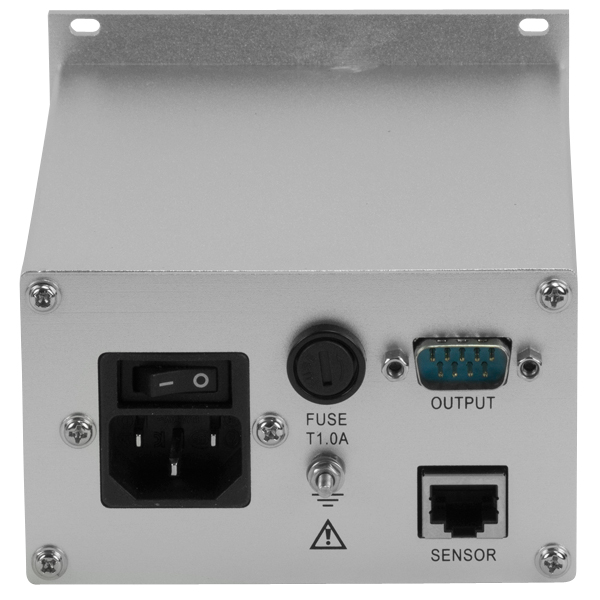

The Agilent Varian AGD-100 has only 1 connection for gauges, it is the RJ45 8 pin female connector. Pressure range is from 10
3 Torr to 10
-10 Torr depending on sensor gauge. Pressure Units are measured in mbar, Pa, or Torr. Input voltage is 90-250 VAC 50/60 hz. For a complete .pdf instruction manual on the AGD-100 scroll down to (AVAILABLE DOWNLOADS)
The following Agilent Varian gauge sensors are compatible with the AGD-100:
- Pirani PVG (PVG-500, PVG-502, PVG-550, PVG-552)
- Pirani/Capacitive PCG (PCG-750, PCG-752)
- Cold cathode/Pirani FRG (FRG-700, FRG-702)
