Adapter KF-50 to 0.500 in. All Stainless Steel Construction, ISO-KF Flange Size NW-50
These adapters are KF-50 to 0.500 in. Stainless Steel Tube. The flange size follows ISO-KF standards and is NW-50. These tube fittings are commonly used to adapt KF vacuum connections to common tube connections for gas or fluid delivery. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting KF flanges and the centering ring contains sealing rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. These are all stainless steel construction.

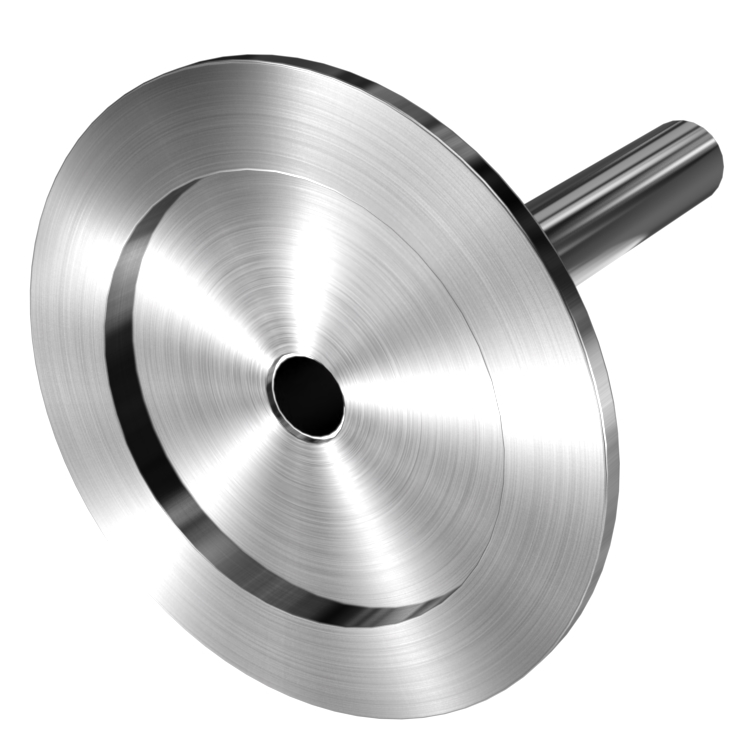

Adapter KF-50 to 0.500 inch, ISO-KF Flange Size NW-50, Stainless Steel
Common Dimensions:
A = 2.95 in. (75 mm), Flange Size: ISO-KF NW-50
B = 4 in. (102 mm) Tube Length
C = 0.37 in. (9.4 mm) Inner Diameter
D = 0.500 in. (12.7 mm) Outer Diameter
