Adapter KF-10 to 1/8 NPT-Female, Flange Size ISO-KF NW-16, Stainless Steel

Adapter KF-10 to 1/8 NPT-Female, Flange Size ISO-KF NW-10, Stainless Steel

These adapters are KF-10 to 1/8 in. NPT female pipe thread. They are commonly used to make connections between ISO-KF and 1/8 inch NPT-Male pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

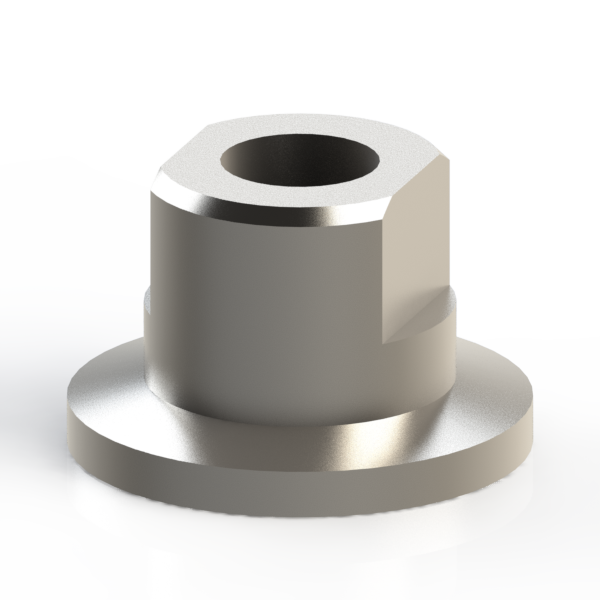

Adapter KF-10 to 1/8 in. NPT-F Pipe, Stainless Steel
Flange Size: ISO-KF NW-10
Pipe Thread: 1/8 in. NPT-Female
Common Dimensions: A = 0.75" (19mm)
