12 x 12 x 12 Cubic Modular Vacuum Chamber Basic Chamber Development Kit with KF and ISO Ports, 1 Cu. Ft.
12 x 12 x 12 Cubic Modular Vacuum Chamber Basic Chamber Development Kit with KF Ports, 1 Cu. Ft.
This is an Ideal Vacuum Cube modular ready-to-assemble basic chamber development kit with KF-16, KF-25, KF-40, and ISO ports. It includes everything needed to assemble a 1.0 cu. ft. cubic vacuum chamber including a 12 x 12 x 12 inch Cube frame, and six 12 x 12 inch Cube plates, all necessary Viton O-ring seals, port blanks, and assembly hardware. Assembly is quick and easy and only requires a 3/16” hex wrench.
Cube plates can be mounted to any frame side, so the user can assemble the chamber to their own needs. An extensive number of interchangeable Cube plates are available and one or more plates can be swapped easily when chamber reconfiguration is needed.
This 12 x 12 x 12 basic cubic chamber development kit includes:
12 x 12 x 12 Cube frame (P107540)
12 x 12 x 12 Cube assembly hardware kit (P108176, includes plate seals and mounting screws)
One 12 x 12 plate with one KF-50, two KF-40, two KF-25, and two KF-16 ports (P108174)
One 12 x 12 ISO-F 100 plate (P108153)
Four 12 x 12 blank plates (P108171)
Rubber vibration isolating foot kit
Centering rings, bulkhead clamps, and blanks for all ports
Please download the Cube plate installation manual and vacuum fittings assembly guide for instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.

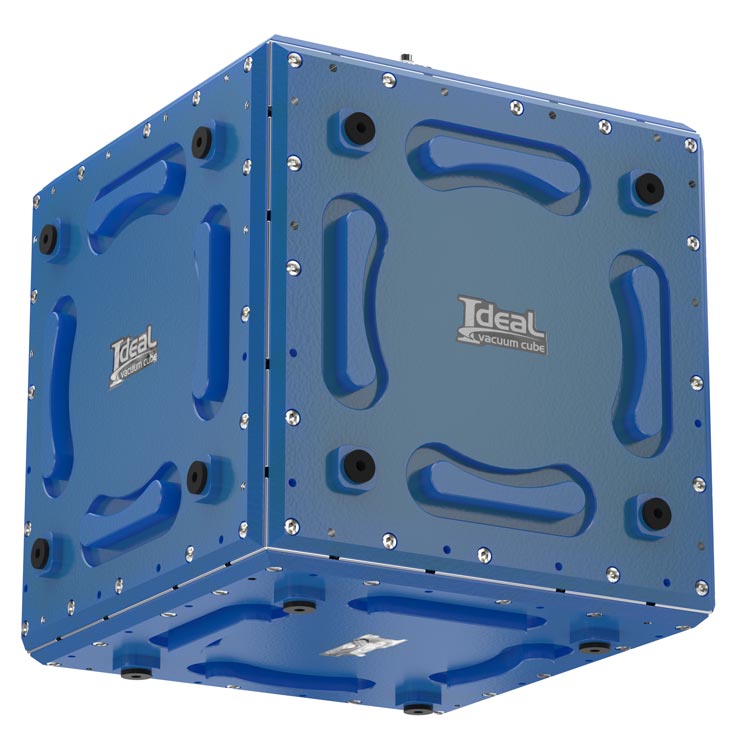

The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.
The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight aluminum construction makes it easy to transport around the lab or mounted to an optical table.

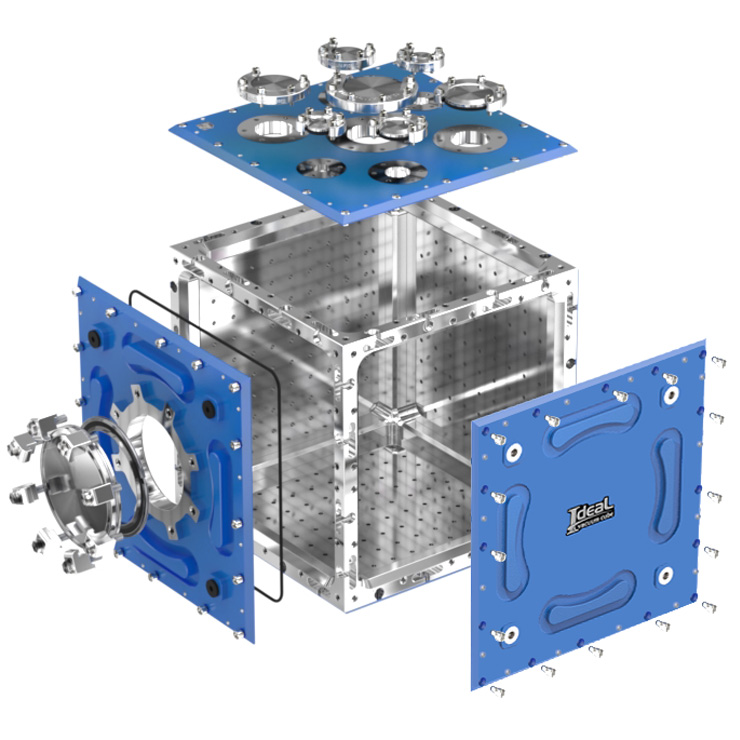

Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.
An extensive number of interchangeable Cube plates are available and one or more plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates are machined from 6061-T6 aluminum (unless otherwise indicated) and include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.
The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.
Availability Of Kit Components
Kit: P108246 - 12 x 12 x 12 Cubic Modular Vacuum Chamber Basic Chamber Development Kit with KF and ISO Ports, 1 Cu. Ft.
